Rotary Microtome Manufacturer,Supplier and Exporter in India

Rotary Microtome

Product Code : EL-BLE-10516

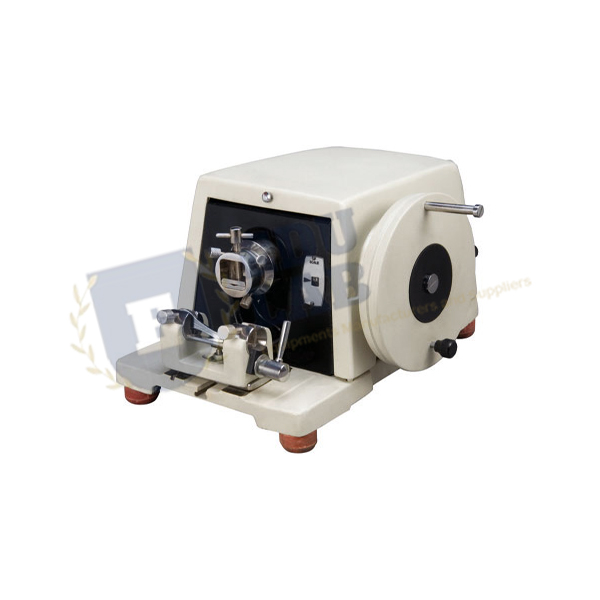

Rotary Microtome
Heavy base with hinged cover for protecting the interior mechanism, and knife holder.
With every complete revolution of the drive wheel, the feed panel engaged the teeth of ratchet wheel which advances the object holder through cone and inclined plane mechanism.
A safety device automatically disengages the feed mechanism.
Feed indicator is in front and fed setting is at back of microtome which sets 1-50 micron.
A razor 120 mm made from heat treated steel and tested for Micro structure is supplied.
There is arrangement to tilt angle of razor adjustable up to 30º on reference scale.

Specifications

Minimum thickness1 Micron
Feed adjustment1-50 Micron
Overall size40 x 38 x 23 cms. with wooden case
Total feed excursion28 mm
Net weight30 Kg. approx

A simpler option is the Hand and Table Microtome, finished sections can be compared with the Animal Prepared Slide Set and the Basic Botany Slide Set, and the Microscope Cover Slips and the Glass Dropper are useful slide-preparation supplies. All belong to Biology Lab Equipments within Biology Lab Equipment.
