DC Shunt Motor And Dc Shunt Generator Trainer Manufacturer,Supplier and Exporter in India

Product Code : EL-EELE-11319

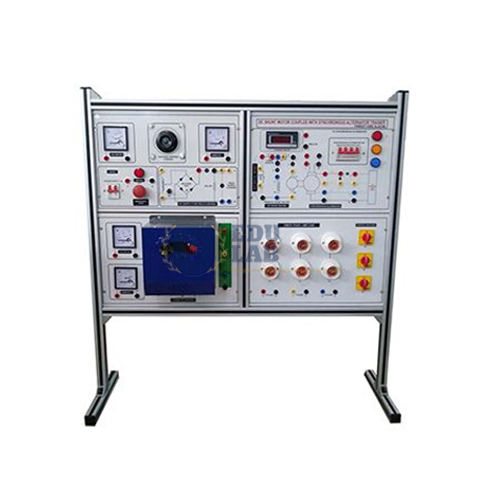

DC Shunt Motor And Dc Shunt Generator Trainer

Forward and reverse operation method of DC motor. Load characteristics experiments of shunt motor. Construction of DC motor and winding resistance measurement. Starting method of shunt motor and speed control. Load & no load characteristics experiment of shunt generator. Efficiency measurement of shunt motor by loss separation method.

Technical Specifications:-

Control Board:

• DC Ampere Meter : 4EA.

• Power : Single phase, AC.

• DC Voltage Meter : 2EA.

• Auto Starter.

• Power Lamp : 3 EA.

• MCCB : 4 EA.

• Field Resister.

• Digital speed meter : 1 EA.

• Speed Detector : 1 EA.

• Electric Machine Assembly : 1 set.

• Style : Steel, Portable type.

Electric Machine

• Voltage : DC 200 V.

• Output : 360 Watt / 0.5 HP.

• Number of Pole : 2 Poles.

• DC shunt motor : 1 set.

• Excitation type : Shunt.

• Rating Speed Counter : 1500 rpm.

• Style : Semi – enclosed type.

We are leading manufacturers, suppliers of DC Shunt Motor And Dc Shunt Generator Trainer for Electronics Engineering Lab Equipments. Contact us to get high quality DC Shunt Motor And Dc Shunt Generator Trainer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

The DC Shunt Motor And DC Shunt Generator Trainer is part of our range of Electronics Engineering Lab Equipments available from our Electronics Lab product line. For related DC machine training equipment, see our Load Test On DC Shunt Motor Panel, D.C. Motor, and DC Compound Motor And Generator Trainer.
