Forced Draft Tray Dryer Manufacturer,Supplier and Exporter in India

Forced Draft Tray Dryer

Product Code : EL-EELE-11370

Forced Draft Tray Dryer

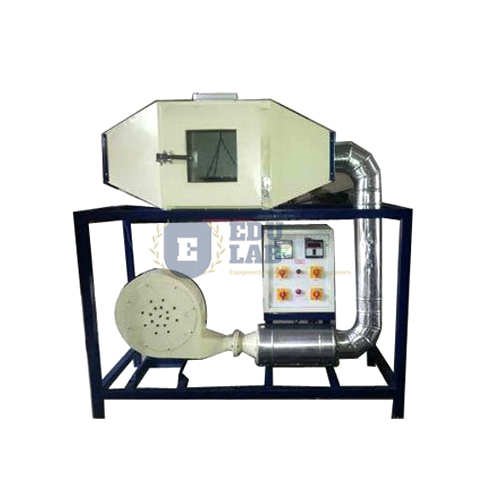

The set-up consists of an insulated double wall chamber. Inside the chamber a tray is attached directly to an electronic weighing balance, which is fitted on top outside the chamber. Air from blower passes through heating chamber to produce hot air works as the drying agent entered from one side of the chamber and leave the chamber from other side removes the moisture from the tray. Material for drying is placed in the tray and regular loss of weight is monitored. An arrangement is made to vary and measure the airflow rate. The set-up is designed to demonstrate and stimulate the moisture removal by heat under forced draft action created by hot air stream.A digital temperature controller is used to control and measure the temperature of air stream.
Features:-
•  Compact & stand alone set up.
•  Superb Painted structure.
•  Simple to operate & maintain.

Utilities required

Electric supply230 +/- 10 VAC, 50 Hz, single phase electric supply with proper earthing
Sockets5A, three pin socket with switch for weighing scale, 15A, three pin socket with switch for heater
Trial materialSaw dust @ 1Kg
Air flow measurementAnemometer
We are leading manufacturers, suppliers of Forced Draft Tray Dryer for Electronics Engineering Lab Equipments. Contact us to get high quality Forced Draft Tray Dryer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Drying studies on this tray unit can be extended to continuous operation with the Rotary Dryer, and the Fluidized Bed Charcterstics apparatus adds gas-solid contacting; for other unit operations see the Adsorption in Packed Bed and the Chemical Process Engineering. These sit within our Electronics Engineering Lab Equipments range under Electronics Lab.
