Refrigeration Test Rig

Product Code : EL-EELE-11280

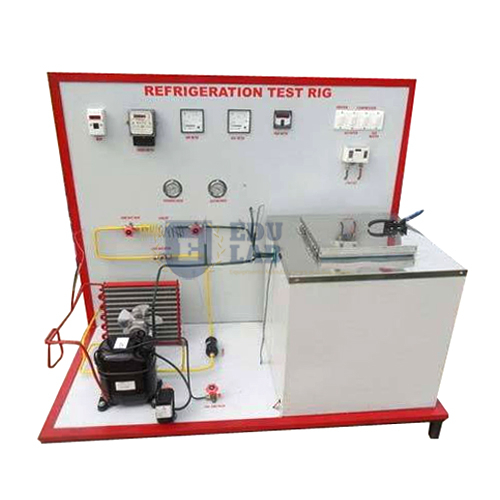

Refrigeration Test Rig
The test rig is designed for the study of thermodynamics of vapour Compression refrigeration cycle by way of demonstration and experimentation. It has a facility to measure various parameters for experimentation. The set up demonstrates the students about the basic principal of a refrigeration cycle.
Experimentation:-
•  To Calculate Co-efficient of performance and draw P-H Diagram.
•  To Study the Vapour Compression refrigerator cycle.
•  To calculate refrigerant capacity.

Technical details

CompressorHermitically sealed compressor
Capacity1/3 Ton, Kirloskar make
AgitatorCompatible capacity
CondenserAir cooled compatible to 1/3 Ton compressor
Condenser cooling fanCompatible capacity with permanent lubricated motor
EvaporatorMade of Stainless Steel, Insulated with ceramic wool/P.U.F.
RotameterRange 6 to 60 LPH
Expansion deviceCapillary Tube, Compatible Capacity
Pressure gauges2 Nos.
ControlOverload and over current protectors for compressor and Time delay circuit
Temperature sensorRTD PT-100 Type
Digital voltmeter0-300 V
We are leading manufacturers, suppliers of Refrigeration Test Rig for Electronics Engineering Lab Equipments. Contact us to get high quality Refrigeration Test Rig for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

The absorption-cycle counterpart is the Electrolux Refrigerator Test Rig, and the Industrial Refrigeration Unit and Cold Storage Plant offer larger systems; the Compressor Fault Simulator adds fault practice. Find these in Electronics Engineering Lab Equipments under Electronics Lab, or contact us via Contact Us.
