RF Trainer + 23 Modules + 500MHz Spectrum Analyser TG Manufacturer,Supplier and Exporter in India

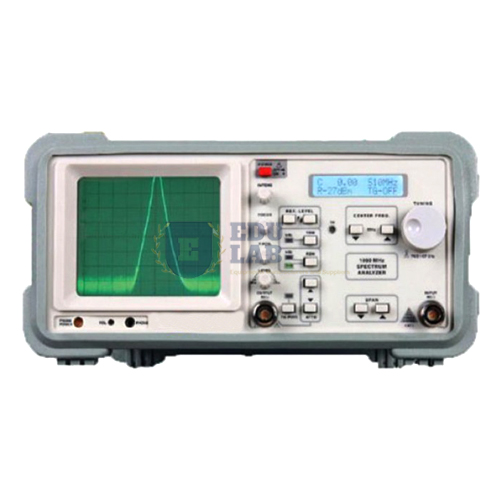

RF Trainer + 23 Modules + 500MHz Spectrum Analyser TG

Product Code : EL-EELE-11286

RF Trainer + 23 Modules + 500MHz Spectrum Analyser TG
Waveform and modulation independent. Low cost with high performance. Inbuilt frequency counter. Wide input range -85dBm to 20Vp-p. RF modules for experimentation. Tracking signal source for network analysis. 10MHz to 500MHz measurement range.

Technical specifications

Frequency range10 MHz – 500 MHz
Resolution100KHz
Input range-85dBm to 20Vp-p
Center frequency display4 digit LED display
Input impedance50 Ohms (BNC)
Horizontal scanupto – 50MHz/div continuous
Center frequencyVariable control
CRO outputLinear X out (BNC) Log Y out (BNC)
We are leading manufacturers, suppliers of RF Trainer + 23 Modules + 500MHz Spectrum Analyser TG for Electronics Engineering Lab Equipments. Contact us to get high quality RF Trainer + 23 Modules + 500MHz Spectrum Analyser TG for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Pair it with the Wave & Antenna Trainer for antenna work and the Microwave Communication Trainer for microwave links; the Frequency Modulation & Demodulation and Pulse Position Modulation & Demodulation add modulation practice. Browse Electronics Engineering Lab Equipments within Electronics Lab, with Tenders for tender supply.
