Electro-Hydraulic Trainer Kit Manufacturer,Supplier and Exporter in India
Product Code : EL-ICE-11498
Lab Instruments Manufacturers manufactures the Electro-Hydraulic Trainer Kit in-house at our own India facility, supplying it to engineering colleges and industrial-control/automation labs, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This Kit Does

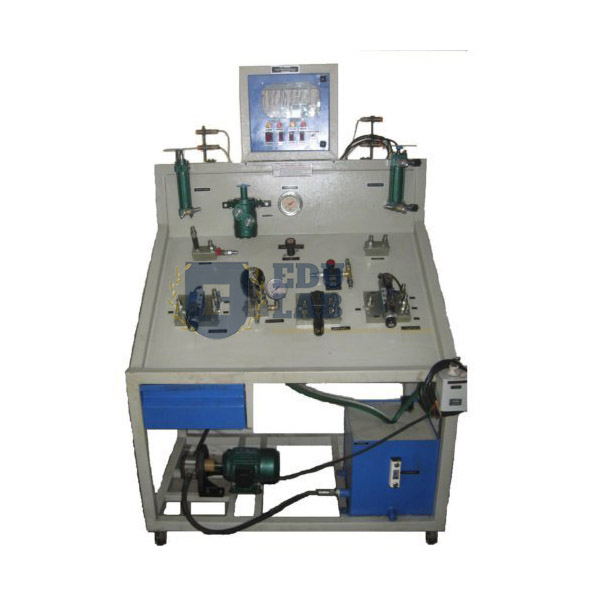

This trainer teaches electro-hydraulic circuit design and control using a mild-steel powder-coated cubical plant with standard instrument mountings. It includes both a double-acting cylinder and a single-acting cylinder (each with a 40mm bore diameter and 75/100mm stroke length), an oil hydraulic power pack for power supply, electro-hydraulic proximity sensors, solenoid valves, limit switches, and wall-mounting assemblies for the hydraulic actuator and self-reciprocating cylinder, plus an optional hydraulic motor.
Design and Safety Features
The unit uses a compact, ergonomic, self-explanatory layout with training-manual mimic charts to make operation easier to follow, and is built with leak-proof safety measures, sturdy piping, and inbuilt safeguards against improper use. The system frame includes caster wheels for easy movement around a lab. QRC couplings, tubing/hose pipes, and a distribution manifold are provided for pressure circulation, and optional fault-simulation components are available for fault-operation and diagnosis training.
Manufactured In-House
This trainer is designed and assembled at our own India production facility. Manufacturing in-house means our team controls build quality at every stage, and can configure the cylinder set, valve arrangement, or accompanying courseware for a specific curriculum or export order without waiting on an outside supplier.
Frequently Asked Questions
What cylinders are included?
Both a double-acting and a single-acting cylinder, each with a 40mm bore diameter and 75/100mm stroke length.
Is fault-diagnosis training possible?
Yes, optional components are available that allow fault operation and diagnosis training on the trainer.
Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
Related Equipment
Part of our Industrial Control Equipment range. See also Electro-Pneumatic Trainer Kit. For pricing and specification sheets, reach us via Contact Us or the Tenders page.
Last updated: September 2026. Written by Palak Mall, Senior Content Writer. Reviewed by Arvind Kumar, Lab Equipment Specialist (12+ years).
