Ballistic Galvanometer Manufacturer,Supplier and Exporter in India
Product Code : EL-PLE-10319
Lab Instruments Manufacturers manufactures the Ballistic Galvanometer in-house at our own India facility, supplying it to physics laboratories in schools and colleges, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This Instrument Does

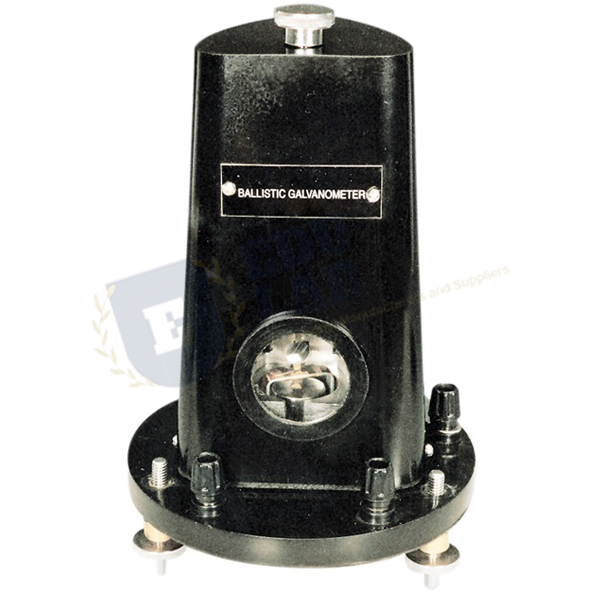

This galvanometer is designed for very low current measurement. It has levelling screws for balancing the coil, and a coil with a mirror suspended between a long suspension thread at the upper end and a spring at the lower end. The suspension and spring are made of a special alloy to give a high degree of sensitivity to movement, and the whole movement is housed in a bakelite case. It is available in two configurations, offering different resistance and sensitivity combinations, detailed below.
| Specification | Configuration 1 | Configuration 2 |
|---|---|---|
| Resistance | 100? | 500? |
| Time period | 12 sec | 12 sec |
| Charge sensitivity | 300mm/µC | 600mm/µC |
| Current sensitivity | 1000mm/µA | 1400mm/µA |
| Critical damping resistance | 2000? | 3500? |
Typical Use
College and university physics laboratories use the ballistic galvanometer for measuring very small quantities of charge and current, such as in experiments on capacitor discharge, electromagnetic induction, and mutual inductance, reading the deflection reflected from the suspended mirror.
Manufactured In-House
This galvanometer is manufactured at our own India production facility. Manufacturing in-house means our team controls suspension alignment and mirror calibration at every stage, and can produce custom sizes or bulk sets for a specific institutional order or export shipment without waiting on an outside supplier.
Frequently Asked Questions
What is a Ballistic Galvanometer used for?
Measuring very low currents and small quantities of charge, using a mirror-suspended coil to reflect and magnify the deflection.
What configurations are available?
Two: a 100? version and a 500? version, each with a matching charge sensitivity, current sensitivity, and critical damping resistance.
Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
Related Equipment
Part of our Physics Lab Equipments range, within Physics Lab Equipment. For pricing and specification sheets, reach us via Contact Us or the Tenders page.
