Youngs Modulus Apparatus

Product Code : EL-PLE-10901

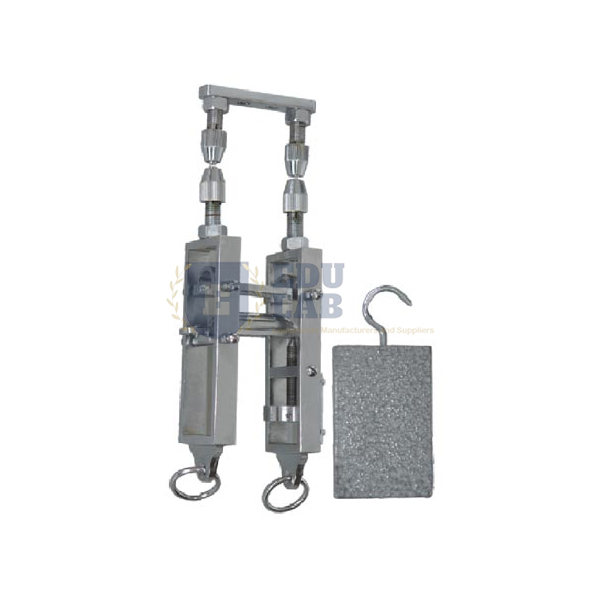

Youngs Modulus Apparatus
An accurately graduated micrometer screw to read to 0.01mm is fitted on one frame.
One end of a sensitive spirit level is pivoted to one of the frame, the other end rests on the points of a micrometer screw fitted in the other frame.
The bubble of the level is adjusted to its zero mark and the reading of the micrometer observed.
Searle’s pattern.
The instrument consisting of two frames connected by a link.
The frames are fitted with self centering chucks.
The load is then applied and by turning the micrometer screw the bubble is again adjusted to zero.
Complete with chucks, ceiling attachment and tension weight. With case.
The reading is observed and the difference between the reading gives the extension of the wire.

Specifications

PatternSearle’s pattern
Micrometer screwread to 0.01mm
Chucksself centering chucks
Supplied withchucks, ceiling attachment and tension weight. With case.

Spring elasticity is covered by the Hooke's Law Apparatus and the Spring Unit. Load the wire with Slotted Masses Steel, and measure dimensions with the Vernier Calliper; see Physics Lab Equipments within Physics Lab Equipment.
