Datalogger

Product Code : EL-TWL-11817

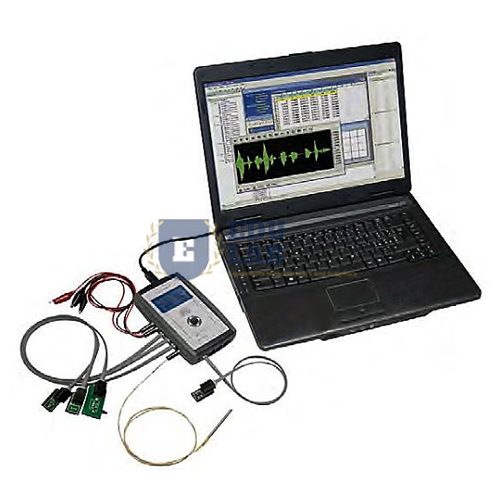

Datalogger
Description:-
Datalogger has been designed to gather data simply from laboratory tests.
The Basic Unit includes the sensors most frequently used in the experiments (voltage, current, electric power, temperature, luminosity, magnetic field and pressure), but it can be extended via the external connection of Sensors.
It can also be used in direct connection with a PC, via USB, to gather and process data the software Workspace.
It includes high-resolution converters (12 bit) to ensure the highest accuracy in measurements.
It can be used in stand-alone mode, with quantities shown on the graphics display and commands set by a joystick.
It is supplied with a 2 MB internal RAM memory for storing the acquired quantities.
Specification:-
Sensors includedvoltage, current, temperature, luminosity, magnetic field, absolute pressure of gases
Graphic Liquid-Crystal Display (LCD)128 x 64 pixels
Number of analog inputs for internal sensors4
Number of digital inputs3
RAM2 MB
Number of analog outputs2
Max. sampling frequency per channel1 MHz
Conversion resolution12 bit
Dimensions158 x 93 x 30 mm
Number of analog inputs for external sensors4
5-keys Joystick
Internal signal generator
It can be powered via USB when connected to a PC
USB Full Speed interface (12 Mbps) 2.0
It can be powered by an external USB power supply

Related sensors in the range include the Distance Sensor, the Force Sensor, the Temperature Sensor and the Light Sensor. See Training Workshop Labs, part of TVET Lab Equipments Manufacturers.
