Liquid Chromatography Digital System Manufacturer,Supplier and Exporter in India
Product Code : EL-TWL-11764

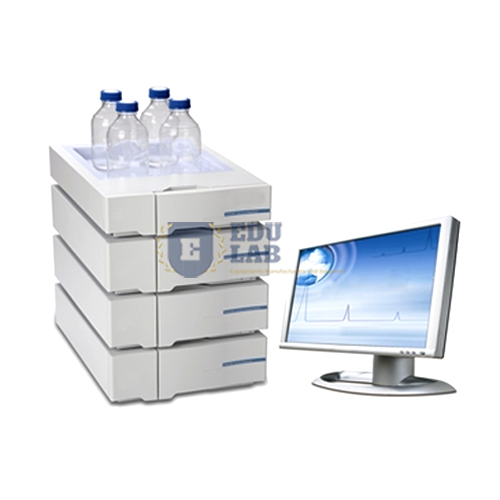

Liquid Chromatography Digital System
Specification:-
HPLC:-
Versatile dedicated applications.
Accurate and reliable data.
Stylish and compact design.
Ultra speed data processing by Network HPLC.
Designed for all you need in the lab.
Enhanced superior performance.
Quaternary Pump
| Gradient formation | 4-channel mixing valve |
| Composition Precision | < 0.1% |
| Composition Accuracy | < 0.5% |
| Operating principle | Parallel dual-plunger pump, Low-pressure gradient |
| Number of Solvents | up to 4 solvents |
Binary Pump:-
Operating principle: Double parallel dual-plunger pump,
High-pressure gradient.
Configure with Gradient pump.
Vacuum Degasser:-
Number of channel: 4 channels.
Maximum flow rate: 10ml/min per channel 0~2.0ml/min per channel for 70% Gas Removed from Methanol.
Internal volume per channel: 925 ul per channel.
Materials in contact with the solvent.
Teflon AF, PEEK, and Glass-filled PTEE.
Column Compartment
| Temperature stability | ± 0.05°C |
| Temperature accuracy | ±0.5°C |
| Temperature range | 4°C (Cooling) - 90°C |
| Column capacity | Max. 3 ea of 30 cm column (Analytical) |
| Column capacity (Semi-Prep) | Max. 2 ea of 30 cm column (Semi-Prep) |
UV/Vis Detector
| Wavelength Range | 190~900nm (Dual wavelength) |
| Data collection rate | up to 50Hz |
| Noise level | < ±0.5 × 10-5 AU, 254nm, dry cell |
| Drift | < 1 × 10-4 AU/hr |
| Linearity | > 99.5% for 2.5AU (acetone, 254nm) |
PDA Detector
| No. of PDA Channel | 1024 |
| Wavelength | 190 ~ 950nm |
| Noise Level | 2 × 10-5 AU (Empty Cell, 1 sec Rise Time, 254nm) |
| Drift | 2 × 10-4 AU/hr (Baseline Correction), 0.001AU/hr (Room Temp) |
| Wavelength Accuracy | 1nm (HY-1 Holmium Oxide Filter) |
RI Detector
| RI Range | 1.00~1.75 RIU |
| Noise | ≤ 5 × 10-9 RIU (Analytical) / ≤ 10 × 10-8 RIU (Semi-prep) |
| Flow Cell Volume | 9 ul (Analytical) / 7 ul (Semi-prep) |
Other analysis and process trainers include the Vapor Liquid Equilibrium Apparatus, the Batch Enzyme Reactor and the Reverse Osmosis Ultra filtration Unit. All are in Training Workshop Labs within TVET Lab Equipments Manufacturers.
