Michelson Interferometer

Product Code : EL-TWL-11807

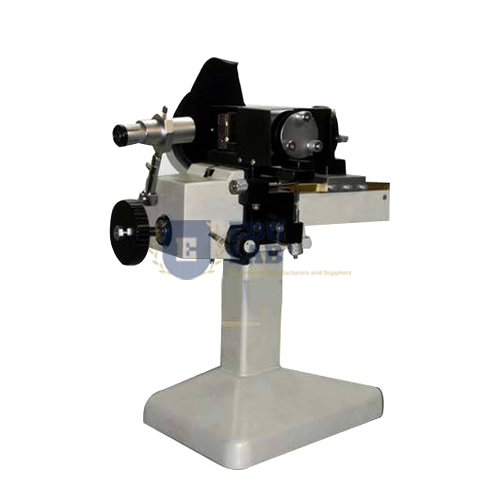

Michelson Interferometer
Feature:-
Interferometer provided by 3 scales
Linear scale 0-150 mm graduated in mm is attached with bed of interferometer
A graduated slow-motion drum (Graduation 0-100 Div) fitted on right-hand side of Interferometer
One division of graduated disc H 0.01 mm
Mirror holders (Fitted with mirror mount), which makes them capable of holding mirrors of 25.4 mm dia & 12.5 mm thickness
One division of sow drum = 00001 mm. that is least count of Interferometer: 10 'mm
Graduated disc (0-100 Div.) may be peeped through glass window and is provided with head of the Interferometer
Specification:-
Mirror (Front surface-coated) Dia25 mm, Thickness: 10 mm
Surface flatness of coated faceA/10 & another face optically polished
Telescope Observation the FringesObjective is an achromatic doublet of din 25 mm
F.L125 mm
Telescope magnification10x
Thickness8 mm
Surface flatnessA/10
Parallelism between two faces<5 arc seconds to maintain their optical identity
Mirrors reflectivity 90%

Other optics apparatus include the Newton Ring Microscope and the Fibre Optics Kit. See Training Workshop Labs, part of TVET Lab Equipments Manufacturers.
