AM- FM Radio Trainer

Product Code : EL-EELE-11295

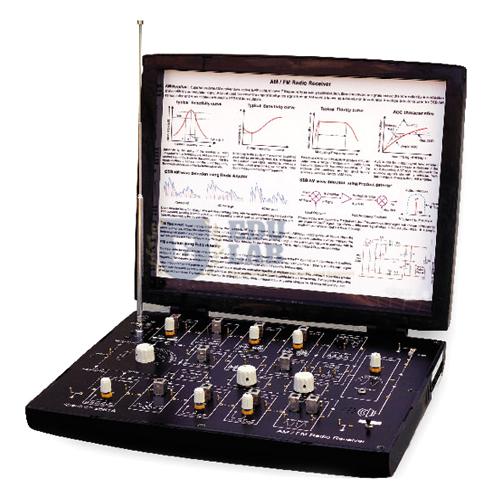

AM- FM Radio Trainer
Provided with high quality printed circuit board with schematic printed on the surface. Trainer forms a “superheterodyne” receiver of standard am (amplitude modulation) and FM (frequency modulated) broadcast frequencies.These have components placed over their corresponding symbols in the schematic drawing on the surface of the printed circuit board that ensure easy learning process and explain theory of operation of the radios. Constructed in sections.

AM radio section

Tuning range520 kHz – 1620 kHz
IF frequency455 kHz
Tracking+ – 3 db from 700 kHz to 1400 kHz
Signal to noise10 db signal to noise at 200 microvolt typical

FM radio section

Tuning range88 MHz – 108 MHz
IF frequency10. 7 MHz
Tracking+ – 5 db from 90 MHz to 106 MHz
Detectorratio detector and full time auto frequency control
Signal to noise10 db signal to noise at 12 microvolt typical
We are leading manufacturers, suppliers of AM- FM Radio Trainer for Electronics Engineering Lab Equipments. Contact us to get high quality AM- FM Radio Trainer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

For the modulation theory behind it, see the Frequency Modulation & Demodulation; the RF Trainer + 23 Modules + 500MHz Spectrum Analyser TG and Microwave Communication Trainer cover higher-frequency systems, and the Oscilloscope Demonstrator Trainer supports waveform observation. Find these in Electronics Engineering Lab Equipments under Electronics Lab.
