Centre Of Pressure Apparatus

Product Code : EL-EELE-11357

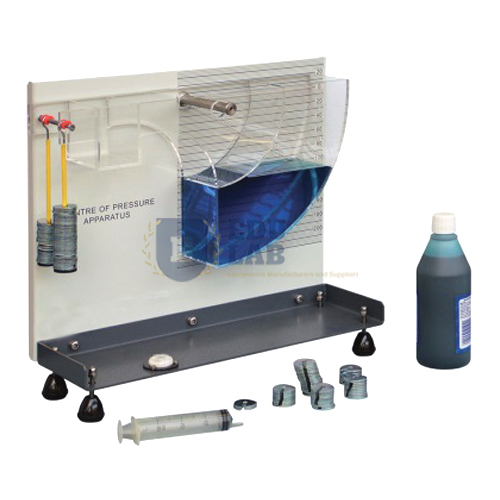

Centre Of Pressure Apparatus
The moment is determined by adding or removing weights to the arm. The head of water is read directly on the transparent scale to within 2 mm. The water is contained in a plexiglass quadrant whose geometrical curved side axes coincide with a measuring beam.
Technical Specifications:-
Quadrant inner radius100 mm
Quadrant outer radius200 mm
Quadrant width75 mm
Graduated face range0 to 30 degrees
Balance arm radius203 mm
Scale range below horizontal axis200 mm
Scale range above horizontal axis40 mm
Scale interval2 mm
Overall dimensions430 x 150 x 330 mm
Net weight5.9 kg
  • Indicates horizontal and vertical beam position.
  • The unit is supplied complete with base, weight carriers and one set of weights, and with a technical bullet in providing typical test results.
  • Fixed scale.
We are leading manufacturers, suppliers of Centre Of Pressure Apparatus for Electronics Engineering Lab Equipments. Contact us to get high quality Centre Of Pressure Apparatus for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.
Explore more from our Electronics Engineering Lab Equipments range within the Electronics Lab category, including related fluid mechanics and hydraulics equipment such as Fluid Friction Apparatus, Methods of Flow Measurement, Flow Level Pressure Temperature Control Bench, and Orifice and Jet Velocity Apparatus.
