Universal Motor Speed Control Manufacturer,Supplier and Exporter in India

Product Code : EL-EELE-11248

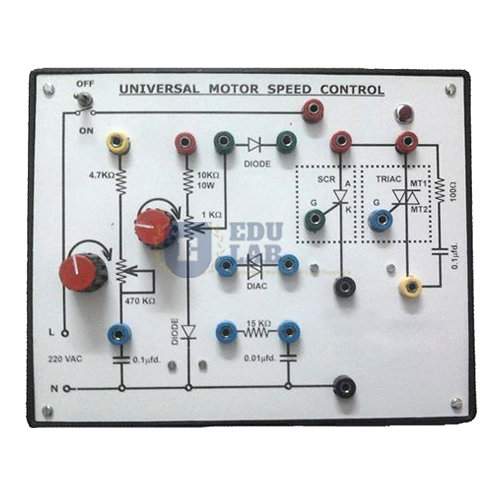

Universal Motor Speed Control

Full wave controller using triac and demonstrating hysteresis effects improved by gate slaving techniques. Half wave controller high torque at low speed version – skip cycling operation.

Features:-

The board consists of following built-in parts:

• A Universal motor of 1/12 H.P. or less capacity.

• SCR and TRIAC for the speed control of the universal motor.

• Two potentiometers.

• Two capacitors to control firing angle of thyristors.

• DIAC and two Nos. of diodes.

• Snubber circuit in parallel with the triac, which helps in improving the Dv/Dt of the device and also helps in reducing the RFI.

• Adequate no. of other Electronic Components.

• Mains ON/OFF switch, Fuse and Jewel light.

We are leading manufacturers, suppliers of Universal Motor Speed Control Electronics Engineering Lab Equipments. Contact us to get high quality Universal Motor Speed Control for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

This Universal Motor Speed Control is part of our Electronics Engineering Lab Equipments range under the Electronics Lab equipment collection. For related motor control demonstrations, see our DC Motor, or explore the AC Induction Motor Winding Trainer.
