Flow Visualisation Wind Tunnel Manufacturer,Supplier and Exporter in India

Flow Visualisation Wind Tunnel

Product Code : EL-EELE-11364

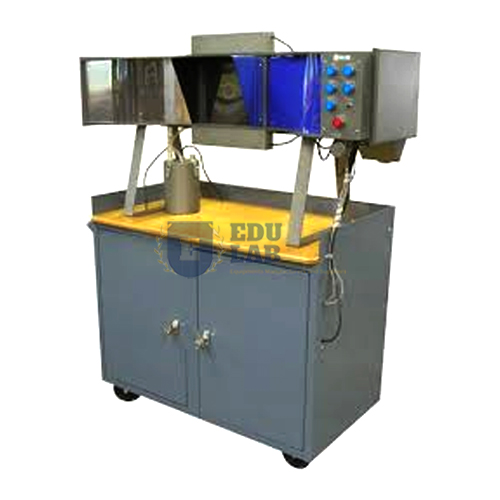

Flow Visualisation Wind Tunnel
Provision is made for a smoke rake immediately before the contraction. Smoke is produced by the atomisation of a heated, medicinal quality, white oil in an air stream. The test section is 25mm x 250mm x 250mm and has a viewing area that can be illuminated by an integral strip light. This is a combined wind tunnel and smoke generator powered by a synchronous a.c. motor driving a centrifugal blower and capable of producing wind speeds of 10 m/s in the test section. A basic set of models is provided. Low turbulence air flow is achieved by the use of 3 gauze screens, a fine honeycomb and a 9:1 contraction.The resulting vapour is non-hazardous and gives a highly visible smoke ideal for photography. A technical manual including product description installation operation and maintenance manual. Models are mounted in the viewing area on a rotatable support.

Specifications

Test section25mm x 250mm x 250mm
Drivesynchronous a.c. motor driving a centrifugal blower
Dimensions1500 x 300 x 715 mm
Weight75 Kg
We are leading manufacturers, suppliers of Flow Visualisation Wind Tunnel for Electronics Engineering Lab Equipments. Contact us to get high quality Flow Visualisation Wind Tunnel for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Smoke-trail observations made in this tunnel can be followed up with quantitative work on the Closed Circuit Subsonic Wind Tunnels and the Drag Co Efficient Apparatus, and the Horizontal Osborne Reynolds Demonstrator offers another way to visualise flow behaviour. The unit is part of our Electronics Engineering Lab Equipments range in the Electronics Lab section; for project pricing, use our Contact Us page.
