CD/VCD Player Trainer Manufacturer,Supplier and Exporter in India

Product Code : EL-EELE-11305

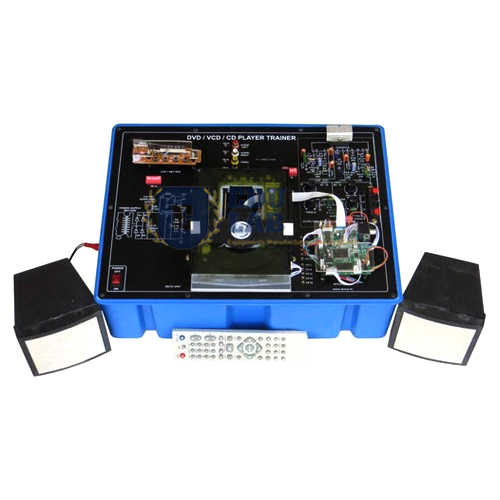

CD/VCD Player Trainer

The digital signal processing section is in assembled open out P.C.B. Explanation, Observation, Alignment and adjustment of Internal and external possible due to single P.C.B. A manual having practical detail is provided with the trainer. The complete circuit of a CD/VCD player is printed on a single P.C.B. Easy identification of different parts and Mechanism at a glance. Easy measurement of voltage and observation of waveforms at any point.The whole circuit of the CD/VCD Player is explained section wise in detail in the manual.

Specifications

Display	Program, Time and Track status display
Laser	Semiconductor Laser (780nm)
Power supply	230V AC, 50Hz
Function switches	Play/ Pause, Forward, Rewind, Stop, Program select/ Repeat, Skip Forward, Skip Reverse, Open/ Close, Tracks Select
Frequency range	5 – 20000Hz
TV system	PAL and NTSC
Audio output	200W PMPO (100W x 2 Channels)
Speakers	2 Nos.
Modulation	EFM
Quantization	16 bit Linear
CD format	Audio CD, Video CD, MP3 CD can be played
Output sockets	Audio Out, Video Out, RF Out (Channel 2)
Remote controls	Play/ Pause, Forward, Rewind, Stop, Program select/ Repeat, Skip Forward, Skip Reverse, Open/ Close,Tracks Select
Sampling frequency	44.1KHz
Distortion	5 to 10% for expanded P.C.B.
Controls	Bass, Treble, and Volume
Test points	15

We are leading manufacturers, suppliers of CD/VCD Player Trainer for Electronics Engineering Lab Equipments. Contact us to get high quality CD/VCD Player Trainer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.
