Slip & Creep Measurement Apparatus

Product Code : EL-EELE-11380

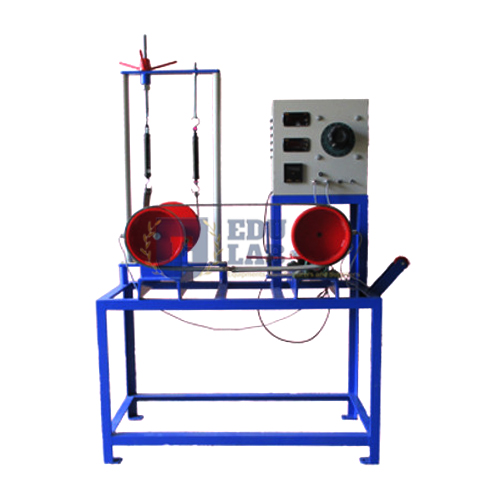

Slip & Creep Measurement Apparatus
The apparatus consists of a variable speed D.C. Motor, driving pulley and driven pulley of equal diameters. The driven pulley can slide on the base only with bearing block to change the initial tension in belt. Brake drum is mounted on the output shaft, which helps to measure power output. Brake drum is mounted on the output shaft, which helps to measure power output. With the help of Stroboscope (not in the scope of supply) it is possible to demonstrate the slip of belt on driving and driven pulley. The motor speed is varied by Thyristor Control D.C. Drive. A double channel digital speed indicator indicates driving and driven pulley speeds. Belt slip or creep also can be measured. The pulleys are mounted on input shaft (motor shaft) and output shaft.

Technical details

MotorVariable speed DC Motor 1HP, 1500 RPM
PulleysDriving and driven pulleys of equal diameters (flat pulleys)
Loading arrangementBrake drum along with spring balance and rope arrangement is provided to load the system
BeltsFlat belts of fixed length
Belt tightening arrangementBearing block is sliding and dead weight can be applied to set the initial tension in belt
We are leading manufacturers, suppliers of Slip & Creep Measurement Apparatus for Electronics Engineering Lab Equipments. Contact us to get high quality Slip & Creep Measurement Apparatus for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Belt-drive experiments on this unit fit alongside the Universal Governor Apparatus, the Cam Analysis Apparatus and the Static & Dynamic Balancing Apparatus in a theory of machines lab, with the Journal Bearing Apparatus covering lubrication. All appear in our Electronics Engineering Lab Equipments range in the Electronics Lab section.
