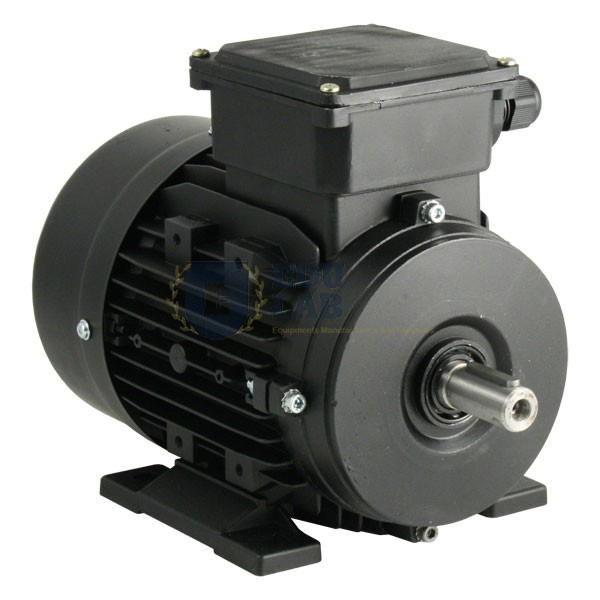

Energy Efficiency In Electric Motors Manufacturer,Supplier and Exporter in India
Product Code : EL-ETS-11560
Lab Instruments Manufacturers manufactures the Energy Efficiency In Electric Motors trainer in-house at our own India facility, supplying it to electrical/industrial engineering labs, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This Trainer Does
This trainer teaches energy-saving practice on a real pumped-fluid process line built around a 3-phase motor-driven pump (0.37 kW, cast iron body, brass impeller, max flow rate 40 l/min), controlled through an industrial Variable Speed Drive (0.4 kW, PID control mode as standard, 7 user-configurable preset speeds) and an advanced PLC with an operator interface. Process instrumentation includes a pressure switch (1 to 12 bar), three 2-way NC electro-valves with brass bodies, a flow-rate transducer (1 to 40 l/min) and a pressure transducer (0 to 10 bar, 0–10V output), all monitored through a Multifunction Network Analyzer. Students learn to set up the network analyzer, program the PLC and VSD, work with the trainer's float switch, flow sensor, pressure sensors and solenoid valves, and quantify the energy savings achieved by drive-based motor control versus fixed-speed operation, with process data exportable via micro SD card to Microsoft Excel for analysis.
Key specifications
| Pump | 0.37 kW, cast iron body, brass impeller, max flow rate 40 l/min |
| Variable speed drive | 0.4 kW, PID control mode as standard, 7 user-configurable preset speeds |
| Controller | advanced PLC with an operator interface |
Typical Lab Use
Engineering colleges use this trainer in electrical, industrial and energy-engineering coursework to teach practical energy-efficiency measurement and variable-speed-drive control on a real pumped process line, complementing the renewable-generation side of this range covered by trainers such as our Photovoltaic Trainer.
Manufactured In-House
This trainer is assembled and calibrated at our own India production facility. Manufacturing in-house means our team controls build quality at every stage, and can configure the PLC/VSD programming set or accompanying courseware for a specific curriculum or export order without waiting on an outside supplier.
Frequently Asked Questions
What does the Energy Efficiency In Electric Motors trainer teach?
It teaches energy-saving motor control on a real pumped process line: PLC and Variable Speed Drive programming, process instrumentation, and measuring the energy savings of drive-based control versus fixed-speed operation.
Can process data be exported for analysis?
Yes, data saved to a micro SD card can be imported into Microsoft Excel for further processing.
Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
Related Equipment
Generation-side trainers in our Energy Training System range include the Photovoltaic Trainer and the Wind Energy Modular Trainer. For PLC skills, see the Programmable Logic Controller (FATEK PLC) Trainer in the Automatic Control Lab Equipments section; all belong to Engineering Lab Equipment.
