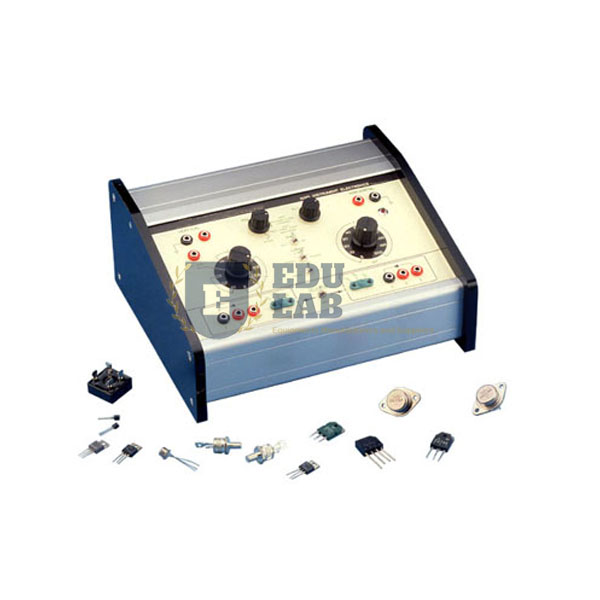

Digitized Semiconductor Curve Tracer Manufacturer,Supplier and Exporter in India
Product Code : EL-TILE-11529
Lab Instruments Manufacturers manufactures the Digitized Semiconductor Curve Tracer in-house at our own India facility, supplying it to engineering colleges and electronics testing labs, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This Instrument Does
This curve tracer generates and displays semiconductor device characteristic curves (such as diode and transistor I-V curves) digitally, with a built-in TFT LCD screen so it can be used standalone without a PC. It can generate 8 sets of digital curves on screen in about 1 second, and provides two test sockets so students can measure and directly compare two devices side by side.
Data Handling and Connectivity
Up to 8 sets of previously captured curves can be saved and reloaded for later revision and comparison, and a USB port is provided to load captured data onto a PC for reporting or further analysis. The unit can also connect to an external oscilloscope for real-time measurement when that level of detail is needed.
Key specifications
| Display | built-in TFT LCD screen |
| Curve generation | 8 sets of digital curves on screen in about 1 second |
| Test sockets | two test sockets |
| Curve memory | Up to 8 sets of previously captured curves |
| PC connection | USB port |
Typical Lab Use
Engineering colleges and electronics testing labs use this tracer to teach semiconductor device characterisation, letting students see how real diode and transistor curves compare to textbook theory. It pairs naturally with our Differential Active Probe for broader electronics test-and-measurement coursework.
Manufactured In-House
This instrument is designed and assembled at our own India production facility. Manufacturing in-house means our team controls build quality and calibration at every stage, and can configure the unit for a specific curriculum or export order without waiting on an outside supplier.
Frequently Asked Questions
Does this curve tracer need a PC to operate?
No, it has a built-in TFT LCD screen and can be used standalone, though a USB port is provided to load data onto a PC when needed.
How many curve sets can be saved?
Up to 8 sets of previously captured curves can be saved and reloaded for revision and comparison.
Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
Related Equipment
Pair it with the Differential Active Probe on a Training Bench; both belong to our Testing Instrument Lab Equipments range of Engineering Lab Equipment. Semiconductor experiments also appear in the Electronics Engineering Lab Equipments section.
