Steam Engine Sectional Model Manufacturer,Supplier and Exporter in India
Product Code : EL-PLE-10340
Lab Instruments Manufacturers manufactures the Steam Engine Sectional Model in-house at our own India facility, supplying it to school and college physics and engineering laboratories, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This Model Shows

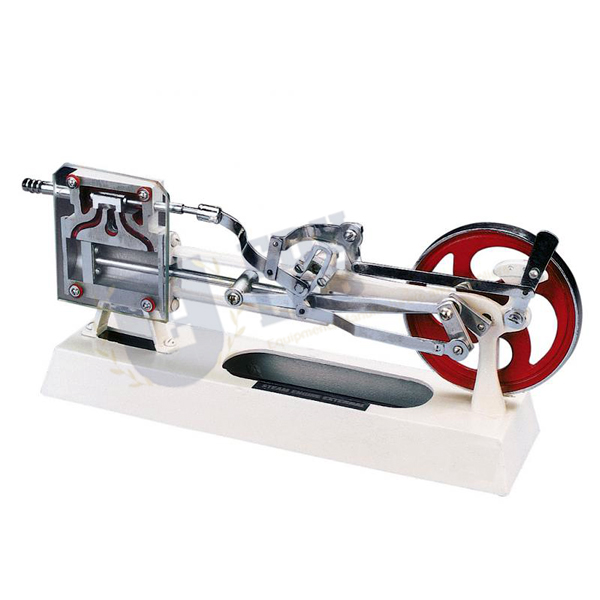

This model shows the internal structure and operating principles of a working steam engine. The metal cylinder is cross-section cut and covered with a clear plate so students can watch the movement of the piston inside the cylinder as the engine runs. Movement of the flywheel is light enough to be demonstrated simply by blowing air from one's mouth. The piston and slide valve both move, and the link motion and reversing method can be observed directly.
| Specification | Detail |
|---|---|
| Cylinder | Cross-section cut, covered with a clear plate |
| Moving parts visible | Piston, slide valve, link motion, reversing method |
| Flywheel | Light enough to turn by blowing air from the mouth |
| Dimensions (on base) | 14 x 7 x 4 inches |
Typical Use
School and college physics and engineering laboratories use this sectional model for classroom demonstrations of steam-engine operation, letting students directly observe the piston, slide valve, link motion, and reversing gear in action rather than working only from a diagram.
Manufactured In-House
This model is manufactured at our own India production facility. Manufacturing in-house means our team controls cylinder machining and clear-plate fitting quality at every stage, and can produce custom sizes or bulk sets for a specific institutional order or export shipment without waiting on an outside supplier.
Frequently Asked Questions
What does this model demonstrate?
The internal structure and operating principles of a working steam engine, including the piston, slide valve, link motion, and reversing method.
How is the internal movement made visible?
The metal cylinder is cross-section cut and covered with a clear plate.
What are the dimensions on base?
14 x 7 x 4 inches.
Related Equipment
A boiler-driven version is the Steam Engine Model with Boiler, and the Steam Engine Sectional Demonstration Model is a further teaching model. Internal combustion engines are covered by the Sectional Model of 4 Stroke Cycle Petrol Engine and the Sectional Model For 4 Stroke Cycle Diesel Engine; see Physics Lab Equipments in Physics Lab Equipment.
