Flexible Manufacturing System

Product Code : EL-CTM-11743

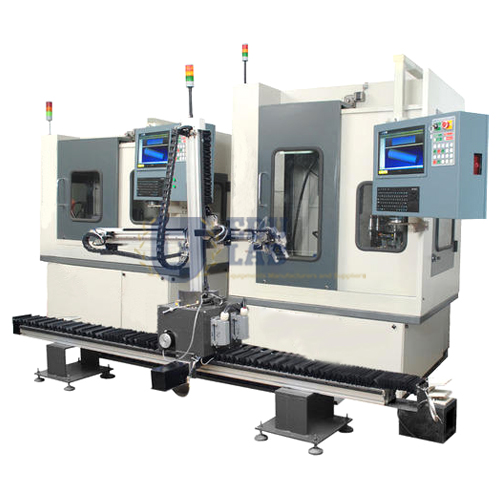

Flexible Manufacturing System

Description:-

Our offered tool is tested on various stages in terms of quality.

Customers can avail this system from us as per their necessities at reasonable rates.

Specification:-

Controller

Cut Viewer

Control System

PLC Based Control System

Axis Motor and Drive

Servo Motor with Servo Drives

Chuck Type

Hydraulic

Chuck Size

125 mm

Bed Type

45 Degrees Slant

Feed Rate

0 to 10,000 mm/min

Center Height

100 mm

Resolution X and Z-Axis

0.001 mm

Positional Accuracy

0.005 mm

Repeatability

0.010 mm

Spindle Power

2 HP, AC Servo

Spindle RPM

100 to 3000 RPM with VFD

Axes Travel (X / Z)

80 mm / 280 mm

Tool Changer

Automatic - 8 Station Turret

Accessories

Automatic Coolant, Automatic Lubrication

Dimension in mm

1470 x 780 x 160 mm

Automation training continues with the Robotic Arm, the PLC and HMI Training Kit and the Electro Pneumatic Trainer; for turning, see the Spinner 18. All are in CNC Trainer Machine, part of TVET Lab Equipments Manufacturers.
