CNC Milling Machine Floor Model

Product Code : EL-CTM-11724

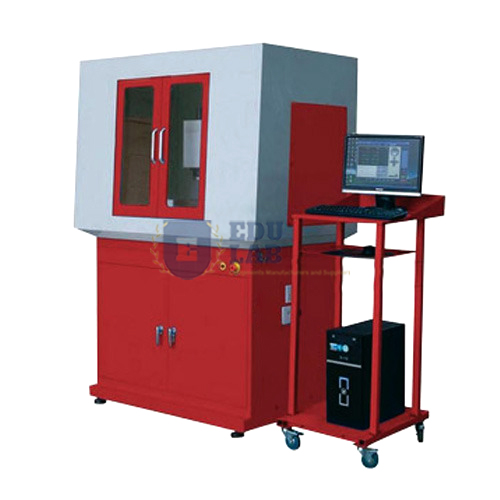

CNC Milling Machine Floor Model
Specification:-
Drilling Capacity16mm (0.6”)
Worktable Size500 x 160mm (22” x 6.3”)
Worktable T-Slot Size12mm (0.5”)
No. of T-Slot on Table3
Table Travel z-axes270mm (11”)
X Axes Feeding Motor Power4Nm
Y Axes Feeding Motor Power4Nm
Z Axes Feeding Motor Power6Nm
Max. Loading of Worktable35 kg
Table Travel x-axes280mm (11”)
Table Travel y-axes120mm (4.7”)
X/ Y/ Z Axes Max. Moving Speed2m/min
X/ Y/ Z Axes Feeding Speed500mm/min
Throat232mm (5.9”)
Position Precision0.015mm
Repeat Positioning Precision001mm
Spindle Speed100-5000rpm
Spindle Motor1kw
Machine Size (L x W x H)1280 x 895 x 1845mm
Packing Size (L x W x H)1420 x 1060 x 2035mm
G.W./N.W.570/510 kg

For a smaller footprint, see the CNC Milling Machine Table Model; turning is covered by the CNC Lathe Machine Floor Model and the CNC Trainer Lathe Machine, while the CNC Trainer Milling Machine and the Smart Mill 500 offer other milling options. All are in CNC Trainer Machine, part of TVET Lab Equipments Manufacturers.
