Los Angeles Abrasion Machine Manufacturer,Supplier and Exporter in India

Los Angeles Abrasion Machine

Product Code : EL-CL-11891

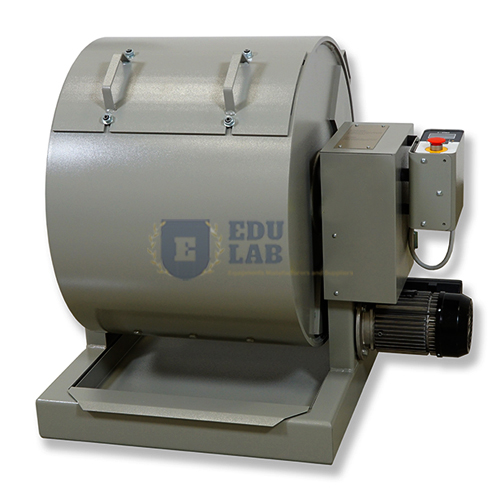

Los Angeles Abrasion Machine

This test covers the procedure for testing coarse aggregates for resistance to abrasion.

The machine is equipped with an automatic counter, which can be preset to the required number of revolutions of the drum or the total working time.

The drum is rotated by a speed reducer driven by an electric motor at a speed of between 31 and 33 RPM.

The unit is supplied without the abrasive charge, which has to be ordered separately depending on the standard in use.

The machine is supplied without the safety cabinet, and can be upgraded with a safety cabinet with door opening switch, or a noise reduction safety cabinet with door opening switch.

Specification:-
SpecificationValue
Drum Inside Diameter711 mm
Drum Internal Length508 mm
Drum Speed31-33 RPM
CounterAutomatic, presettable for revolutions or working time
Abrasive ChargeOrdered separately depending on standard in use
Optional UpgradesSafety cabinet with door opening switch; noise reduction safety cabinet with door opening switch

Browse more Concrete Laboratory testing equipment, or view the full range of TVET Lab Equipments Manufacturers products.
