Digital Point Load Tester

Product Code : EL-CL-11892

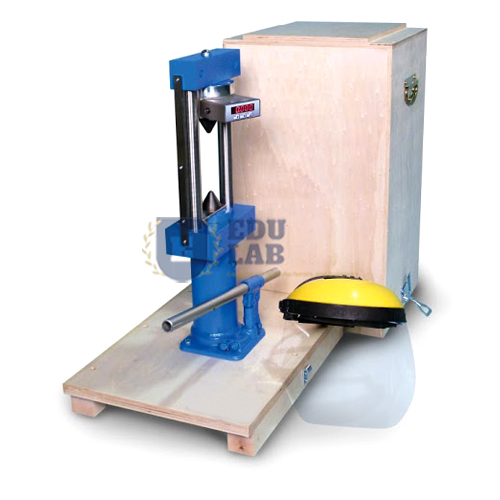

Digital Point Load Tester

This tester is used to determine the strength values of a rock specimen, both in the field and in the laboratory.

It consists of a load frame for applying loads up to 56 kN, on which a manual hydraulic jack is mounted. A graduated scale indicates the distance between the conical points.

The instrument accepts core specimens up to 4" (101.6 mm) diameter, which is loaded with two cone-shaped points.

The applied load is measured by a high precision electric load cell with a digital display unit.

The strength index (Is) is derived from the formula P : D2, where P is the strength and D the spacing between the two conical points.

Specification:-
SpecificationValue
Load CapacityUp to 56 kN
JackManual hydraulic
Core Specimen CapacityUp to 4" (101.6 mm) diameter
Display Range0-56 kN
Divisions65,000
Resolution0.001 kN
Linearity0.05%
Hysteresis0.03%
Repeatability0.02%
Overall Dimensions400 x 530 x 720 mm
Supplied WithWooden carrying case, goggles, accessories

Other strength tests in the range use the Motorized Compression/Tension Machine for concrete and the Impact Testing Machine for Charpy and Izod specimens, while aggregates are tested on the Los Angeles Abrasion Machine. See Concrete Laboratory, part of TVET Lab Equipments Manufacturers.
