Combined Flow Reactor

Product Code : EL-TWL-11796

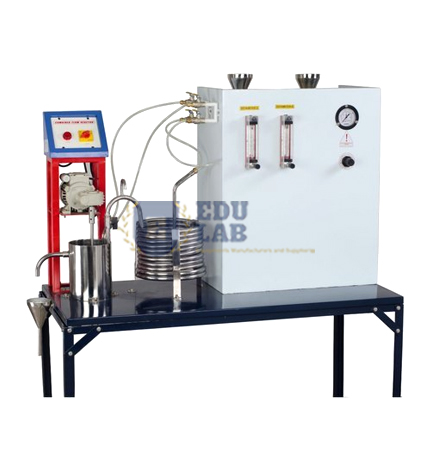

Combined Flow Reactor
Specification:-
Stirrer for MFR: Stainless Steel Impeller and shaft coupled with FHP motor JLab make
Feed circulation: By compressed air.
Pressure Gauge: Bourdon type 0-2 Kg/cm2
The whole set-up is ingeniously designed and schematically arranged on a powder-coated rigid structure.
Feed Tank: Material Stainless Steel, Capacity - 20 Ltrs.
1st Reactor: Material Stainless Steel, Capacity 0.7 Ltrs. (approx)
2nd Reactor: Material Stainless Steel, Capacity 2 Ltrs (approx).
Flow Measurement: Rotameter 2 Nos. (one each for Reactants)
Piping: Stainless Steel and PVC
Pressure Regulator: 0-2 Kg/cm2

Objectives:-
Sponification Reaction Study in Coil Tube Type Plug Flow Reactor
Sponification Reaction Study in an MFR.
Sponification Reaction Study in a Combined Reactor
To determine Reaction Rate Constant.

Required for Operation:-
Water Supply & Drain
Compressed Air Supply at 2 Bar, 0.5 CFM.
Instruments, Laboratory Glassware, and Chemicals required for analysis as per the system adopted.
