Michel Tilting Pad Bearing Apparatus

Product Code : EL-EELE-11381

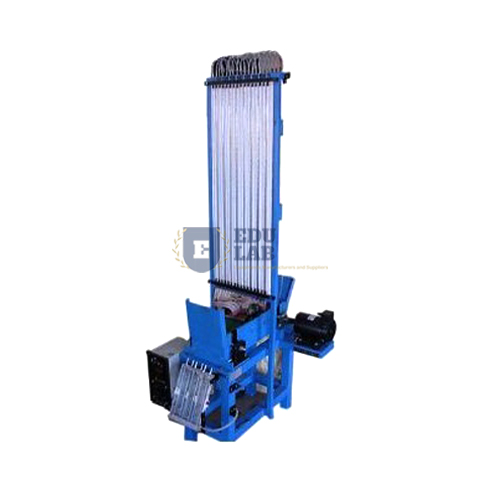

Michel Tilting Pad Bearing Apparatus
The pressure distribution is measured over a multi tube manometer. The belt is driven by a variable speed motor. When the pad is tilted over the oil film, pressure is developed, the pad is provided with pressure tapings parallel and perpendicular to belt direction. An endless belt, which moves beneath the pad, carries the oil over its surface from oil bath.  The tilting angle and minimum gap between pad and belt can be adjusted and characteristics thus can be studied at various gaps, inclination and relative surface speeds.

Technical details

BeltEndless belt running over wide pulleys, immersed in oil bath
MotorVariable speed Motor ½ HP, 1500 RPM
Tilting padscircular, square and trapezoidal shapes, one each, with highly polished surface & pressure tapings
Control panelFor speed control unit
Manometer15 Tube manometer

Utilities required

Power supply230 V AC, Single Phase
Floor space1m x 1.5 m (approx)
We are leading manufacturers, suppliers of Michel Tilting Pad Bearing Apparatus for Electronics Engineering Lab Equipments. Contact us to get high quality Michel Tilting Pad Bearing Apparatus for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Lubrication studies on this rig pair well with the Journal Bearing Apparatus; for other machine elements, see the Slip & Creep Measurement Apparatus, the Whirling Of Shaft Apparatus and the Motorised Gyroscope Apparatus. These belong to our Electronics Engineering Lab Equipments range under Electronics Lab.
