Study of SCR and A.C. Phase Control Manufacturer,Supplier and Exporter in India

Product Code : EL-EELE-11250

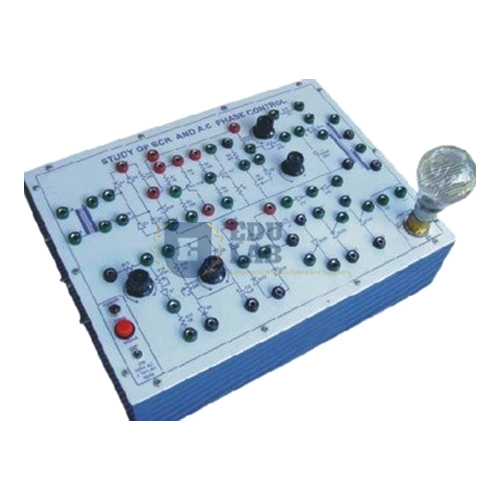

Study of SCR and A.C. Phase Control

This protects external instruments from damage if they are not isolated. The unit is operative on 230V ±10% at 50 Hz A.C. mains. Adequate no. of patch cords stackable 4 mm spring loaded plug length 1/2 meter. Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections/observation of waveforms.Strongly supported by detailed operating instructions, giving details of object, theory, design procedures, report suggestions and book references.

Features:-

• Two potentiometers for resistance controlled ramps.

• Bridge rectifier for full-wave phase control with zener regulator.

• Two potentiometers for resistance controlled pedestals.

Specifications

Isolation transformer	230 VA.C. 250 mA
UJT	2N 2646
Pulse transformer	1:1:1
Mains	230V ±10% at 50 Hz

We are leading manufacturers, suppliers of Study of SCR and A.C. Phase Control for Electronics Engineering Lab Equipments. Contact us to get high quality Study of SCR and A.C. Phase Control for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Continue with the DV/DT Limitation of SCRs for snubber protection and the SCR Regulated D.C. Power Supply for regulated output, while the Universal Motor Speed Control applies phase control to a motor. See Electronics Engineering Lab Equipments in our Electronics Lab range, and Tenders for tender supply.
