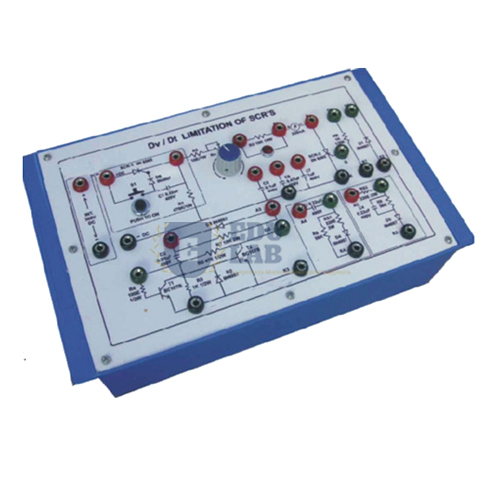

DV/DT Limitation of SCRs

Thyristor switch for applying sudden voltage on the SCR under experiment. The SCR under experiment. Transistorized snubber circuit. Two schemes for R-C snubber circuits.Resistance for gate-cathode termination. 300 V D.C. at 250 mA, power supply internally connected. Silicon diode. Visual indication to indicate SCR firing. Adequate no. of other electronic components. Mains ON/OFF switch, fuse and jewel light.

Specifications:-

• Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections/ observation of waveforms

• Strongly supported by detailed operating instructions, giving details of object, theory, design procedures, report suggestions and book references

• The unit is operative on 230 V ±10% at 50 Hz A.C. mains.

• Adequate no. of patch cords stackable 4 mm spring loaded plug length ½ meter.

• Weight: 3 kg. (approx.).

• Dimension: W 340 x H 110 x D 210.

We are leading manufacturers, suppliers of DV/DT Limitation of SCRs for Electronics Engineering Lab Equipments. Contact us to get high quality DV/DT Limitation of SCRs for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

This DV/DT Limitation of SCRs setup is part of our Electronics Engineering Lab Equipments range under the Electronics Lab equipment collection. For related thyristor and power electronics experiments, see our SCR Regulated D.C. Power Supply, or explore the Power Electronics Training System.
