Displacement Measurement (LVDT) Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : EL-MACL-11615
Lab Instruments Manufacturers manufactures the Displacement Measurement (LVDT) Apparatus in-house at our own India facility, supplying it to engineering colleges and instrumentation labs, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This Apparatus Does

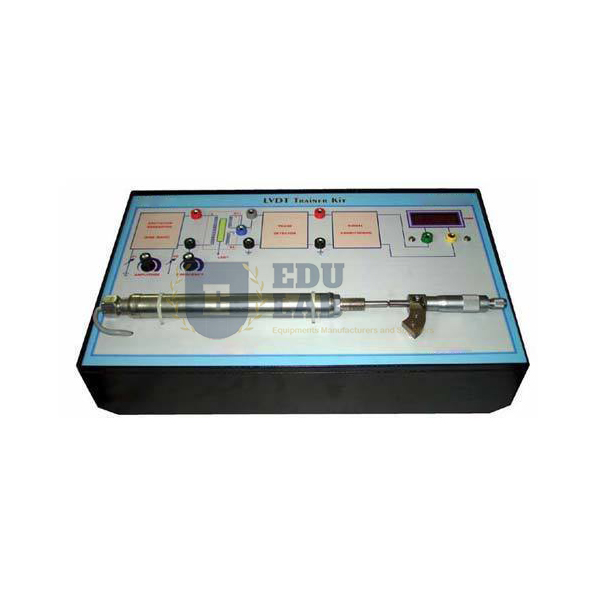

This apparatus is a demonstration setup for measuring linear displacement using a Linear Variable Differential Transformer (LVDT) sensor. A manual micrometer-driven mechanism varies the actual displacement applied to the sensor, and a reference micrometer comparison scale lets students verify the LVDT's measured output against a known mechanical displacement. The setup includes an LVDT sensor with its signal conditioning circuit and a digital indicator (least count 0.1mm, 3½ digit display, 0–20mm range) housed in a powder-coated enclosure.
Key details
| Sensor | LVDT sensor with its signal conditioning circuit |
| Displacement input | manual micrometer-driven mechanism |
| Least count | 0.1mm |
| Display | 3½ digit display |
| Range | 0–20mm |
| Enclosure | powder-coated enclosure |
Typical Lab Use
Engineering colleges use this apparatus to teach the working principle and linearity characteristics of LVDT-based displacement sensors, comparing sensor output against a mechanically verified reference displacement. It is typically studied alongside other transducer-calibration experiments in our Measurment and Control Lab range, such as Calibration of Load Cells, which teaches the same calibration-against-reference principle for force transducers.
Manufactured In-House
This apparatus is assembled and calibrated at our own India production facility, with the micrometer mechanism, LVDT sensor mounting, and digital indicator integrated and tested in-house. Manufacturing in-house means our team controls build quality and calibration accuracy at every stage, and can configure the displacement range or accompanying courseware for a specific curriculum or export order without waiting on an outside supplier.
Frequently Asked Questions
What does this apparatus teach?
The working principle and linearity of an LVDT displacement sensor, by comparing its measured output against a mechanically applied reference displacement.
What is the measurement range and resolution?
0 to 20mm range, with a digital indicator reading to a least count of 0.1mm.
Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
Related Equipment
Other transducer experiments in Measurment and Control Lab include the Temperature Measurement and Control (RTD), the Calibration of Load Cells, the Flow Measurement By Rotameter and the Level Measurement (Capacitive Principle). The section is part of our Engineering Lab Equipment range.
Last updated: October 2026.
