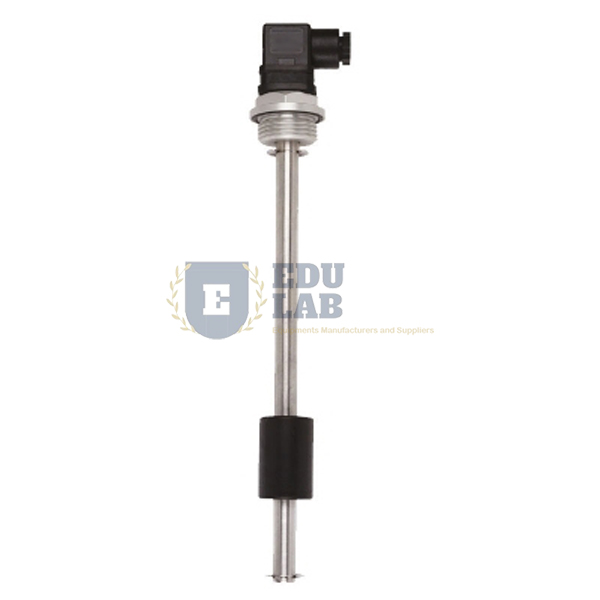

Level Measurement (Capacitive Principle) Manufacturer,Supplier and Exporter in India

Product Code : EL-MACL-11619

Lab Instruments Manufacturers manufactures the Level Measurement (Capacitive Principle) Apparatus in-house at our own India facility, supplying it to engineering colleges and instrumentation labs, and as an OEM/private-label item to distributors and exporters across India and internationally.

What This Apparatus Does

This apparatus demonstrates capacitive-principle level measurement using a transparent acrylic main tank whose water level is to be measured. Two of the tank's facing walls are fitted with metal plates on their inside faces; with the tank empty, these two plates plus the air between them form a capacitor, and as water fills the tank the changing dielectric between the plates changes the measured capacitance, which corresponds to the water level. A linear scale fitted on the tank gives a visual reference reading (max reading height 100mm) to check against the capacitive measurement, displayed on a digital indicator (least count 1mm, 3½ digit) in a powder-coated enclosure.

Typical Lab Use

Engineering colleges use this apparatus to teach the capacitive principle of level sensing, comparing the electrically measured level against a directly visible scale reading, complementing our Flow Measurement By Rotameter Apparatus in a broader process-instrumentation curriculum covering flow and level sensing.

Manufactured In-House

This apparatus is fabricated and assembled at our own India production facility, with the acrylic tank, internal metal plates, and indicator circuit built and tested in-house. Manufacturing in-house means our team controls build quality and measurement accuracy at every stage, and can configure the tank size or accompanying courseware for a specific curriculum or export order without waiting on an outside supplier.

Frequently Asked Questions

What does this apparatus teach?
The capacitive principle of liquid level measurement, using two internal metal plates whose capacitance changes as the water level between them rises or falls.

What is the maximum measurable level?
100mm, read on both a linear scale fitted to the tank and a digital indicator with 1mm least count.

Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
