Drilling Jig For An Annular Disc Manufacturer,Supplier and Exporter in India
Product Code : EL-MM-11598
Lab Instruments Manufacturers manufactures the Drilling Jig For An Annular Disc in-house at our own India facility, supplying it to mechatronics and mechanical engineering labs, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This Model Does

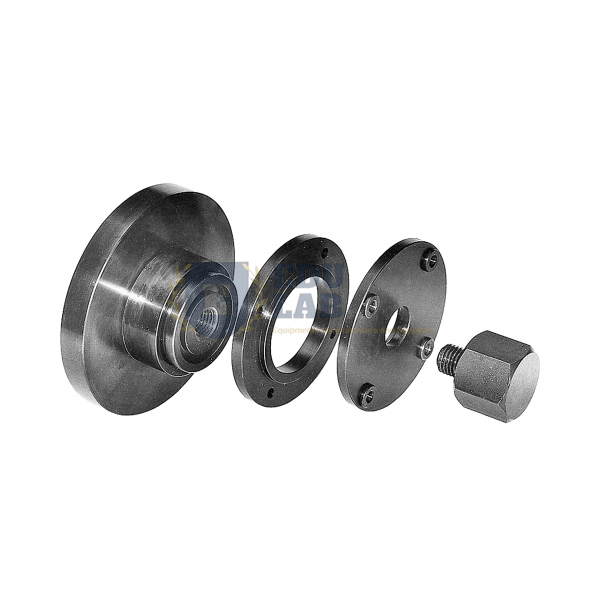

This is a practical drilling jig for machining an annular-disc bearing cover, with all components precision-manufactured from steel and finished with a gunmetal surface to prevent corrosion. It forms part of a broader course introducing technical drawing, with a didactic approach that teaches systematic, transferable learning based on how the jig's operational mechanism actually works, supported by comprehensive, well-structured instructional material.
Key details
| Purpose | machining an annular-disc bearing cover |
| Components | precision-manufactured from steel |
| Finish | gunmetal surface to prevent corrosion |
Typical Lab Use
Engineering colleges use this model in technical-drawing and manufacturing-process coursework to teach jig design and disc-machining principles through a real operational mechanism, complementing the drawing-focused Cylindrical Work Samples With Slanted Cut-Outs model set in this range.
Manufactured In-House
This jig is machined and finished at our own India production facility. Manufacturing in-house means our team controls dimensional accuracy and surface-finish quality at every stage, and can configure the instructional material for a specific curriculum or export order without waiting on an outside supplier.
Frequently Asked Questions
What does this model teach?
Jig design and annular-disc bearing-cover machining principles, taught through a real, working operational mechanism rather than a static diagram.
What is the jig made from?
Precision-manufactured steel components with a corrosion-resistant gunmetal surface finish.
Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
Related Equipment
Pair it with the Cylindrical Work Samples With Slanted Cut-Outs for drawing exercises and the Hydrodynamic Journal Bearing for assembly practice. The Automatic Production Line Training and Assessment Equipment and the Phote-Electro-Mechanical Integration Training System complete the Mechatronics Models line within Engineering Lab Equipment. Quotes are available via Contact Us.
