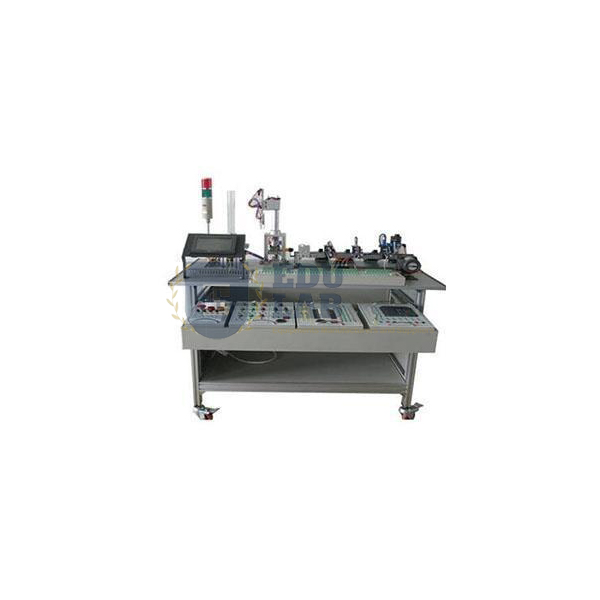

Phote-Electro-Mechanical Integration Training System Manufacturer,Supplier and Exporter in India
Product Code : EL-MM-11600
Lab Instruments Manufacturers manufactures the Phote-Electro-Mechanical Integration Training System in-house at our own India facility, supplying it to mechatronics and industrial-automation engineering labs, and as an OEM/private-label item to distributors and exporters across India and internationally.
What This System Does
This system offers a typical integration-training environment combining a touch-screen module, PLC module, inverter module, button module, power-source module, wiring terminal strip and a range of sensors, all closely interconnected so students can freely combine, install and debug the mechanisms themselves. Technical parameters: a 1200 x 800 x 840mm training table on an aluminium steel frame, a three-phase five-wire AC 380V ±10% 50Hz supply, whole-set apparent power consumption of ≤1.5 kVA, and safety protections including grounding protection, leakage/overload/overcurrent protection, high-insulation safety sockets and high-strength safety experiment wires.
Technical parameters
| Modules | touch-screen module, PLC module, inverter module, button module, power-source module, wiring terminal strip and a range of sensors |
| Training table | 1200 x 800 x 840mm |
| Frame | aluminium steel frame |
| Power supply | three-phase five-wire AC 380V ±10% 50Hz |
| Apparent power consumption | ≤1.5 kVA |
| Safety protections | grounding protection, leakage/overload/overcurrent protection, high-insulation safety sockets and high-strength safety experiment wires |
Typical Lab Use
Engineering colleges use this system in mechatronics and industrial-automation coursework to teach integration of touch-screen, PLC, inverter and sensor subsystems into one working control system, complementing the production-line-specific integration taught on our Automatic Production Line Training and Assessment Equipment.
Manufactured In-House
This system is assembled and safety-tested at our own India production facility. Manufacturing in-house means our team controls build quality and safety-protection compliance at every stage, and can configure the module set or accompanying courseware for a specific curriculum or export order without waiting on an outside supplier.
Frequently Asked Questions
What does this system teach?
Integration of touch-screen, PLC, inverter, button and sensor subsystems into one working electro-mechanical control system, assembled and debugged by students themselves.
What safety protections are built in?
Grounding protection, leakage/overload/overcurrent protection, high-insulation safety sockets, and high-strength safety experiment wires.
Can this be supplied as an OEM/private-label order?
Yes, it can be produced and packed under a buyer's own brand name and item codes for distributors and exporters ordering in bulk.
