Laboratory Concrete Mixer Manufacturer,Supplier and Exporter in India

Laboratory Concrete Mixer

Product Code : EL-CL-11882

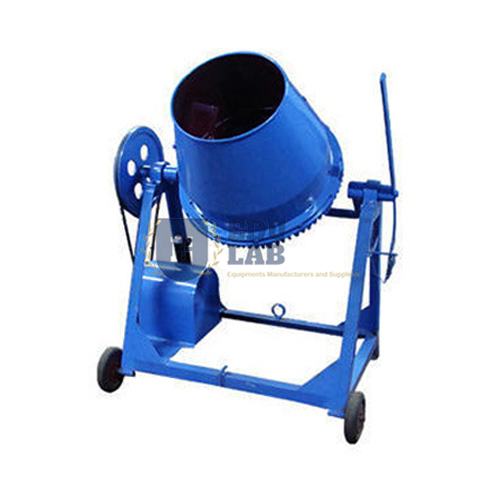

Laboratory Concrete Mixer

The Laboratory Concrete Mixer is used for preparing mix design of concrete.

It consists of a steel vessel of 55/110 litres capacity, mounted on a frame. The vessel is rotated at 20-22 RPM with the help of a motor and a pulley arrangement.

The vessel of the laboratory concrete mixer can be tilted to any angle by a hand wheel and counter weight, which facilitates mixing and discharge.

The drum, pulley wheel, and motor are mounted on a steel frame. Blades are provided inside the vessel to mix the material thoroughly.

The large pulley wheel facilitates manual rotation of the drum during a power failure.

Specifications:-
SpecificationValue
Vessel Capacity55/110 Litres
Vessel Speed20-22 RPM
Motor½ HP
Tilting MechanismHand wheel and counter weight
Power Supply220V, Single Phase, 50Hz, AC Supply

Concrete mixed in this laboratory concrete mixer is typically checked for workability using a Slump Test Apparatus, and the cast specimens are later tested for strength on a Motorized Compression/Tension Machine. Browse more Concrete Laboratory equipment, or view the full range of TVET Lab Equipments Manufacturers products.
