Slump Test Apparatus Manufacturer,Supplier and Exporter in India

Slump Test Apparatus

Product Code : EL-CL-11883

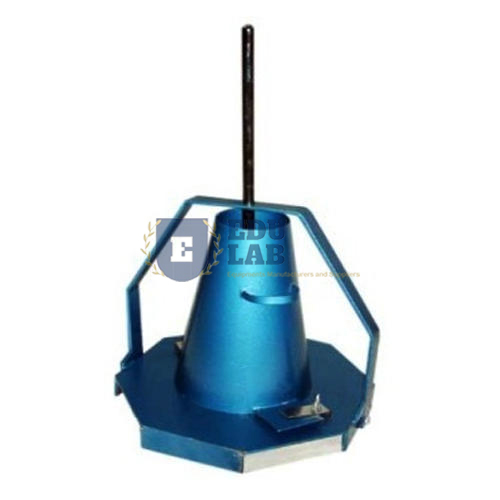

Slump Test Apparatus

The Slump Test Apparatus is used to test the slump (workability) of freshly mixed concrete.

The apparatus consists of one slump cone with handles and foot pieces, which can be fixed to the clamps on the base plate.

The base plate has a lifting handle for easy transportation, and a graduated steel rod is supplied for tamping and measurement.

Specifications:-
ComponentDetails
Slump Cone - Base Diameter20 cm
Slump Cone - Top Diameter10 cm
Slump Cone - Height30 cm
Base PlateFitted with clamps for foot pieces and a lifting handle
Tamping Rod16 mm dia x 600 mm long, rounded at one end and graduated in mm

In a typical concrete testing workflow, concrete prepared in a Laboratory Concrete Mixer is checked for workability with this Slump Test Apparatus before being cast into specimens for strength testing on a Motorized Compression/Tension Machine. Browse more Concrete Laboratory equipment, or view the full range of TVET Lab Equipments Manufacturers products.
