Center Lathe Machine Manufacturer,Supplier and Exporter in India

Center Lathe Machine

Product Code : EL-MMTM-11934

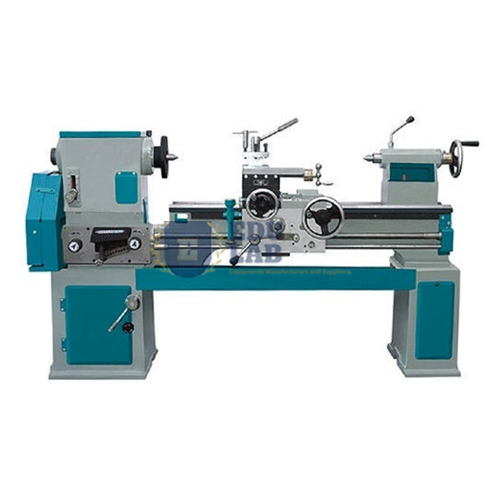

Center Lathe Machine
Description:-
We are the manufacturer of all type of Centre Lathe Machine.
Such as Light Duty, Medium Duty, Heavy Duty, Extra Heavy Duty, CNC Thread Milling Machine, Roll Turning Machine, Roll Grinding Machine, Thread Milling Machine, All geared type Lathe Machines, Special Purpose Lathe Machines.

Specifications

Compound slide travel175 mm
Spindle sleeve (taper bore)MT-5
Spindle bore75 to 200 mm
Taper bore in center sleeveMT-5
Threads and range (1 to 6 mm pitch)13 Inch
Threads and range (2 to 24 TPI)19
Ram travel225 mm
Height of center375 to 450 mm
Admit between center850 to 10750 mm
Swing over bed750 to 900 mm
Swing over cross slide450 to 600 mm
Bed length2100 to 12000 mm
Bed width450 mm
No. of speeds8
Speed range (RPM)30 to 325
Cross slide travel375 to 450 mm
Length of gap in bed250 mm
Swing over gap1000 to 1150 mm
Lead screw diameter and pitch50 mm / 2TPI Metric
Motor (1440 R.P.M. / 440V. / AC-3 Phase)5 H.P. to 7.5 H.P.
Standard Accessories:-
Steady Rest, Follow, Chuck Plate, Spindle Sleeve, Rest, Face Plate, 2 Nos. Dead Center, Change Gear Set, Tool Post Spanner, Switch Stand.
Optional Accessories:-
Rear Tool Post, Electric Motor, True Chuck, Dog Chuck, Reversible Switch, V-Belt, Electrical Coolant Pump with Fittings, Machine Lamp,
Extra Center Height, Extra Spindle Hollow.

Tooling for this lathe in our Metal Manufacturing Training Machine range includes the Parting Tool Holder, the Knurling Tool Holder, the Threading Tool Holder and the Boring Bars with Holder, and the Thread Gauge helps check the threads it cuts. Browse more in TVET Lab Equipments Manufacturers.

Last updated: October 2026.
