Universal Milling Machine Manufacturer,Supplier and Exporter in India

Universal Milling Machine

Product Code : EL-MMTM-11942

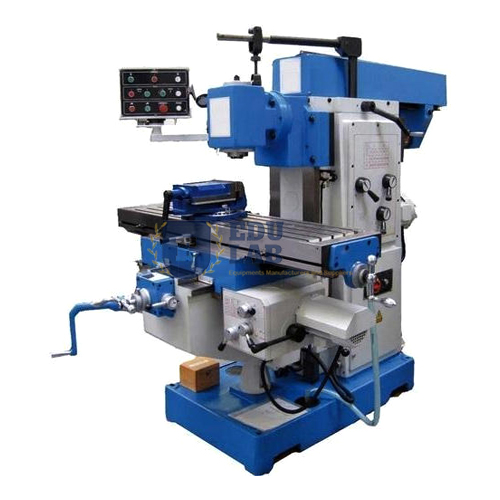

Universal Milling Machine

Work table

Working surface1150 x 255 mm
No. of slots3
Distance between T slots57 mm
Angular swivel22 deg
Max distance from spindle center to table400 mm

Range

Longitudinal feed (hand and auto)600 mm
Cross feed by hand200 mm
Vertical feed by hand400 mm

Spindle

No. of spindle speeds4
Range of spindle speed110 to 580 RPM
Diameter of milling arbor25.4 mm
Distance under over arm to spindle center140 mm

Feed and motors

No. of longitudinal feeds3
Main drive electric motor2 HP, 1440 RPM
Coolant motor0.11 kW, 2700 RPM

Other dimensions

Floor space600 x 900 mm
Height of the machine1400 mm
Approx weight950 kg

Milling accessories in our Metal Manufacturing Training Machine range include the Universal Dividing Head, the Milling Arbor, the Long Milling Arbors and the Tilting and Swiveling Vice. See more in TVET Lab Equipments Manufacturers.
