Knurling Tool Holder Manufacturer,Supplier and Exporter in India
Product Code : EL-MMTM-11936

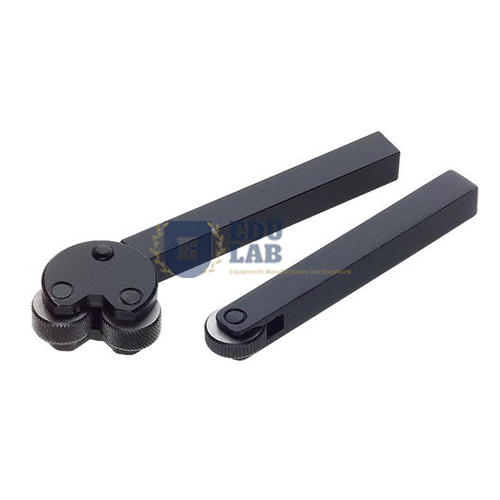

Knurling Tool Holder
Description:-
High-Speed Steel Knurls..
Shiny Black finish.
Six knurls Tool is provided with one pair each
of fine medium and coarse knurls
Two knurls Tool is generally provided with
medium knurls but other knurls can also be provided if required.
|
Item No. |
Size of Holders |
Knurl Dimensions |
No. of Knurls |
|||
|
Dia |
Thick |
Holes |
||||
|
1 |
5/16" x
3/4" x 5" |
5/8" |
5/16" |
7/32" |
2 |
|
|
2 |
3/8" x
7/8" x 5-1/2" |
5/8" |
5/16" |
7/32" |
2 |
|
|
3 |
1/2" x
1-1/8" x 6-1/2" |
3/4" |
3/8" |
1/4" |
2 |
|
|
4 |
5/8" x
1-3/8" x 7-1/2" |
3/4" |
3/8" |
1/4" |
2 |
|
|
5 |
5/16" x
3/4" x 5" |
5/8" |
5/16" |
7/32" |
6 |
|
|
6 |
3/8" x
7/8" x 5-1/2" |
5/8" |
5/16" |
7/32" |
6 |
|
|
7 |
1/2" x
1-1/8" x 6-1/2" |
3/4" |
3/8" |
1/4" |
6 |
|
|
8 |
5/8" x
1-3/8" x 7-1/2" |
3/4" |
3/8" |
1/4" |
6 |
|
|
9 |
1/2" x
1/2" x 4-1/2" |
3/4" |
3/8" |
1/4" |
2 |
|
|
Knurling Tool Holder with Pivot Head Self Adjust |
||||||
|
10 |
1/2" x
1/2" x 4-1/2" |
3/4" |
1/4" |
1/4" |
1 |
|
Pair it with the Parting Tool Holder and the Center Lathe Machine for turning work, or use the Thread Gauge to check thread pitch and the Threading Tool Holder for threading. All belong to Metal Manufacturing Training Machine, part of TVET Lab Equipments Manufacturers.
