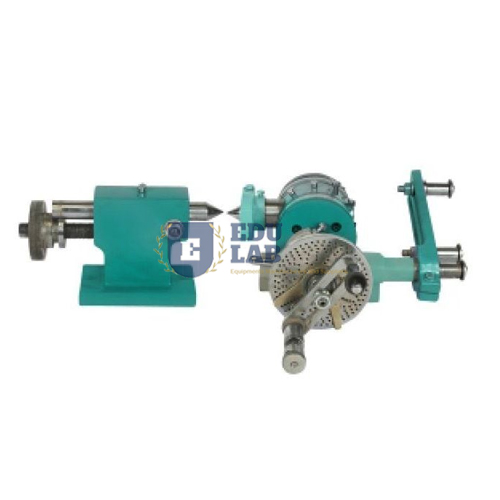

Universal Dividing Head

Product Code : EL-MMTM-11943

Universal Dividing Head

Description:-

Universal Dividing Heads for Tool Room and Production applications..

Work piece can be circularly indexed and precisely rotated to preset angles or circular divisions.

The manual indexed (hand crank) head operates at ratio 40:1; i.e. 1 spindle revolution of 9 degrees per 40 crank turns.

This allows your operator to accurately position the workpiece to any angle with an indexing plate.

It is suitable for indirect as well as differential indexing.

Gear Worm Ratio

1:40

1:40

1:40

Center Height

115 mm

140 mm

165 mm

Spindle Bore

20 mm

32 mm

38 mm

Max. Height

210 mm

260 mm

310 mm

Base Size (L x W)

175 x 125 mm

240 x 150 mm

270 x 170 mm

Weight (Approx.)

65 Kg

90 Kg

125 Kg

Applications:-

Spiral and Cam Milling

Machining the flutes of milling cutter

Gear teeth cutting

Milling curved slots

For milling set-ups, see the Universal Milling Machine, the Milling Arbor and the Long Milling Arbors, while the Tilting and Swiveling Vice holds work at an angle. All are in Metal Manufacturing Training Machine within our TVET Lab Equipments Manufacturers range.
