Tilting and Swiveling Vice Manufacturer,Supplier and Exporter in India
Product Code : EL-MMTM-11944

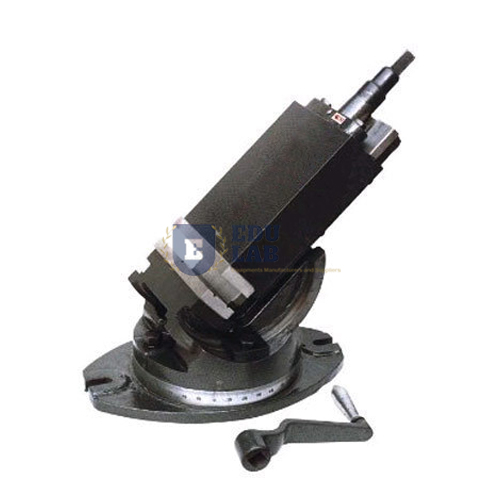

Tilting and Swiveling Vice
Description:-
We bring forth to our clients a commendable
array of Tilting and Swiveling Vice.
Moreover, quality controllers at our end make
sure to offer these products after quality checks to ensure a defect free range
at the patrons ends within the stipulated time frame.
This range is extremely proficient in making
our customer's satisfaction level to the highest by offering a peerless quality
array.
In addition to this, our vice's are anti-corrosive and anti-abrasion that are accredited for their set working patterns that are serrated on the top of the surface.
Feature:-
Positive locking to withstand heavy loads
Horizontal swivel movement 360°, vertical
swivel movement 90°
One vertical two horizontal 'V' grooves are
provided in hardened and ground jaws
Quick alignment to machine tables using a
longitudinal slot
Fine acme thread screw made out of special
steel
Crank handle is made of unbreakable steel provided with a spring-loaded mechanism
Specification:-
|
Size in Inches |
3 |
4 |
6 |
8 |
|
Width of Jaws in mm |
75 |
100 |
150 |
200 |
|
Opening of Jaws in mm |
75 |
100 |
150 |
200 |
|
Depth of Jaws in mm |
35 |
38 |
50 |
60 |
|
Length overall in mm |
270 |
340 |
485 |
635 |
|
Height overall in mm |
135 |
150 |
195 |
230 |
|
Tenon slot Size in mm |
13 |
16 |
20 |
20 |
|
Weight (Approx) in kgs. |
8 |
18 |
42 |
76 |
For holding work on drilling set-ups, our Metal Manufacturing Training Machine range also offers the Drilling Machine Vice, and the Universal Dividing Head and the Milling Arbor are related milling accessories. They are part of TVET Lab Equipments Manufacturers.
