Consolidation Apparatus Manufacturer,Supplier and Exporter in India

Product Code : EL-SM-11904

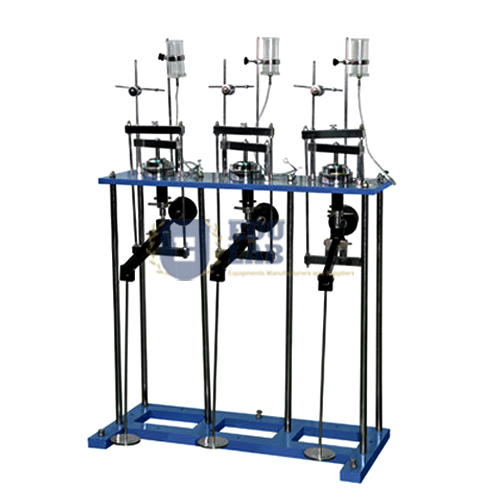

Consolidation Apparatus

Specification:-

The standard outfit comprises of the following items.

Loading unit, maximum capacity 20 kg/cm sq. having a loading yoke connected to a lever arm with a counter balancing adjustment and having a lever ratio of 1:1, the whole assembly being mounted on a sturdy steel frame stand.

Fixed ring type consolidomenter (Odeometer) cell assembly for testing 60 mm Dia x 20 mm thick specimen comprising.

Fixed ring for specimens 60 mm Dia x 20 mm thick with guide ring.

Top and Bottom Porous stones for 60 mm dia specimen.

The loading unit is so designed that it can be used for consolidation cells of different diameters as well as different dia floating ring type consolidation cells.

Perforated Pressure pad, Channelled base with water inlet and Gasket.

Flanged Water Jacket, water reservoir with a plastic tube and pinch cock.

Set of weights (10 kg/cm.sq. on 60 mm dia specimen)

0.05 kg/sq.cm weights	7 Nos.
0.1 kg/sq.cm weights	5 Nos.
0.2 kg/sq.cm weights	6 Nos.
0.5 kg/sq.cm weights	6 Nos.
1.0 kg/sq.cm weights	5 Nos.

Supplied complete as above but without dial gauge.

Accessories

Dial gauge	0.002 mm x 10 mm
Extension piece	40 mm long
Test forms	pad of 50 for Consolidation Test Plot
Test forms (one dimensional consolidation)	pad of 50 for one Dimensional Consolidation

Within our Soil Mechanics range, the Consolidation Apparatus is complemented by the Direct Shear Apparatus and the Triaxial Test Set for shear strength, the Soil Permeability Apparatus for permeability and the Expansion Index Test Apparatus for swell behaviour, all part of TVET Lab Equipments Manufacturers.
