Expansion Index Test Apparatus Manufacturer,Supplier and Exporter in India

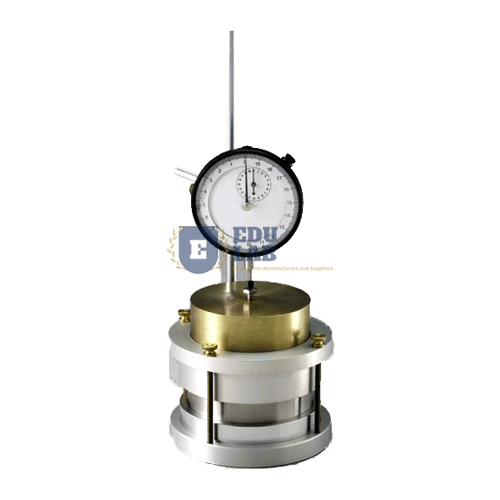

Expansion Index Test Apparatus

Product Code : EL-SM-11919

Expansion Index Test Apparatus

Specifications

Constructioncast aluminum base and collar, stainless steel specimen ring
Base and collarCast aluminum construction; brass hold-down rods
Specimen ringStainless steel; 101.6 x 25.4 mm (4" internal diam. x 1" h.)
Porous stones101.4 x 12.7 mm (4" diam. x 1/2" thick)
Loading weightBrass; 5.7 kg (12.6 lbs.)
Dial indicator0.3" range x 0.0001" graduations. 8 mm range x 0.002 mm graduations
Test duration24 hours or less on the cured sample

Swell and volume change can also be assessed with the Soil Volume Change Meter, and the Shrinkage Limit Set and the Consolidation Apparatus help characterise the same soils. They are listed under Soil Mechanics in our TVET Lab Equipments Manufacturers range.

Last updated: October 2026.
