Soil Permeability Apparatus

Product Code : EL-SM-11909

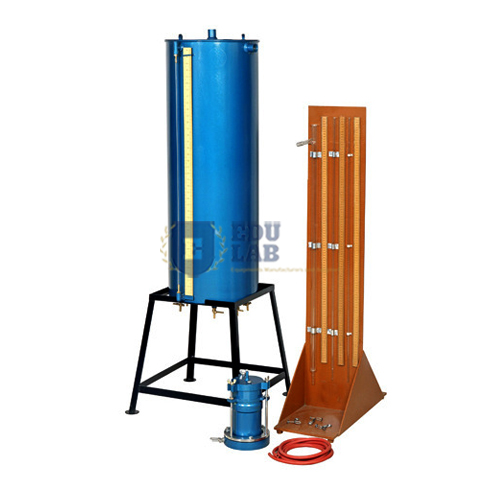

Soil Permeability Apparatus

Equipment supplied (one each)

MouldGun metal mould, 100mm I.D. x 127 mm high x 1000 ml volume
Drainage capGun metal drainage cap (top plate with a recess for a porous stone and fitted with an inlet valve and an air release valve.)
Dummy plateGun metal dummy plate to serve as a false bottom during compaction
Porous stone (base plate)Porous stone for the base plate
Extension collarGun metal mould extension collar, 100 mm Dia x 60 mm high for the above mould
Glass tubesEach glass tube is longer than 1 meter and has a serrested end at the bottom
Clamping ringMetallic clamping ring
Stand pipesSet of glass stand pipes approximately 6 mm dia., 10 mm dia and 20 mm dia mounted on a wooden board
Meter scalesTo read water head 2 Nos. meter scales are fixed between the tubes
Porous stone (drainage cap)Porous stone for drainage cap
Rubber tubingA length of 3-meter long rubber tubing with pinch cock is also supplied
Drainage base plateGun metal Drainage base plate with a recess for a porous stone and with an outlet valve

The Permeability Test System is a related option for permeability work, while the Consolidation Apparatus, the Automatic Mechanical Soil Compactor and the Particle Size Analysis Test Set cover consolidation, compaction and particle size tests. All are listed under Soil Mechanics in TVET Lab Equipments Manufacturers.
