Particle Size Analysis Test Set

Product Code : EL-SM-11903

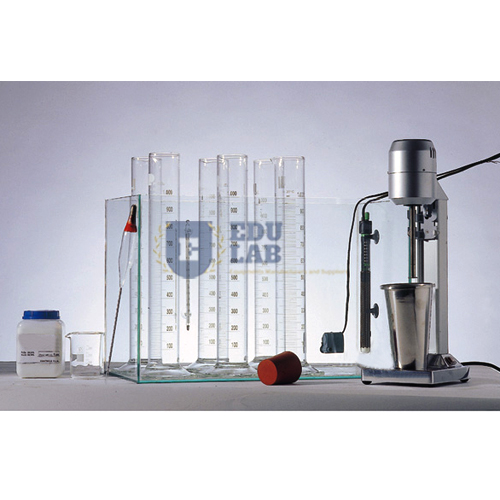

Particle Size Analysis Test Set

Specifications

Capacity8 hydrometer jars
ConstructionStainless steel tank; enamel finish exterior
Jar supportStainless steel grid
Temperature rangeAmbient to 60°C (140°F)
Sensitivity±0.2°C at 20°C (68°F)
Heating systemImmersion type; 700-watt heater in stainless steel mixing chamber
Circulating systemDrive pump with motor
Plumbing portsOverflow; Drain; Inflow and outflow for the cooling system
Inside dimensions959 x 197 x 419 mm (37-3/4" w. x 7-3/4" d. x 16-1/2" h.)
Outside dimensions1,016 x 254 x 584 mm. (40" w. x 10" d. x 23" h)
WeightNet 36 kg 80 lbs
Power supply110vAC to 230vAC, 50/60 Hz

For grain size work, the Soil Mechanics section also offers the Grain Size Chart and the Sand Gauge Chart, while the Laboratory Bench Oven handles sample drying and the Consolidation Apparatus covers consolidation tests. It is part of TVET Lab Equipments Manufacturers.

Last updated: October 2026.
