Motorised CBR Machine Manufacturer,Supplier and Exporter in India

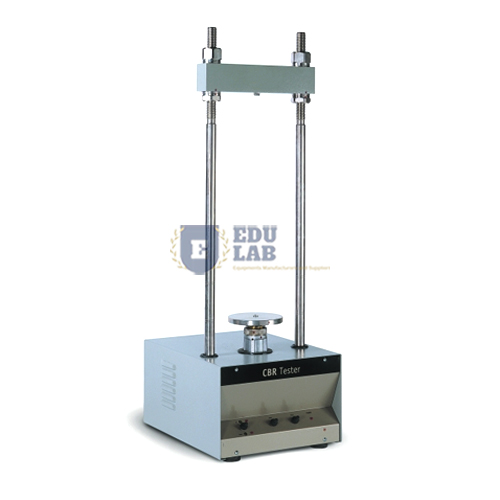

Motorised CBR Machine

Product Code : EL-SM-11910

Motorised CBR Machine
Use:-
CBR test for determining bearing capacity of soils.

Specifications

Frametwin column frame and a motorized drive system
Vertical clearance800 mm (31.5") maximum
Capacity50 kN
Load speedsSelectable: 1.27 mm (0.5") or 1.0 mm
Horizontal clearance255 mm (10")
Platen size133 mm (5.24") diam
Platen travel105 mm (4.13")

Our Soil Mechanics range offers the CBR Test Machine Hand Operated as a manual alternative and the Field CBR Equipment for on-site testing, with the Automatic Mechanical Soil Compactor for preparing compacted samples. The machine is part of TVET Lab Equipments Manufacturers.

Last updated: October 2026.
