CBR Test Machine Hand Operated

Product Code : EL-SM-11897

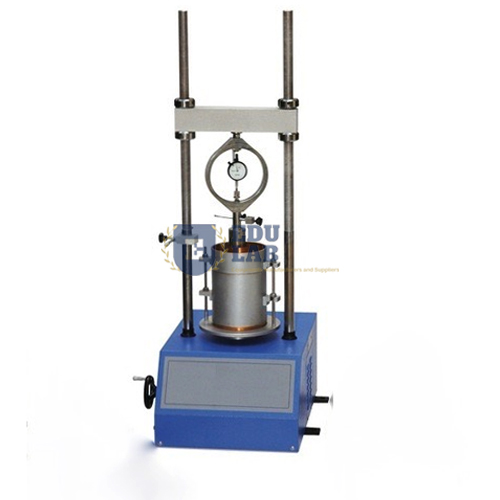

CBR (California Bearing Ratio) Test Machine Hand Operated

Equipment supplied (one each)

MouldGun-metal/Brass, 150mm internal dia x 175mm high, with the perforated base plate and extension collar 50mm high
Penetration pistonface dia 50mm with adjustable bracket for penetration dial gauge
Circular metal spacer disc148mm Dia x 47.7mm high, with detachable handle
Load frameHand operated, Capacity 5000kg. with high and low rates of travel of the load screw
Annular metal weight2.5 kg, 147mm dia with 53mm dia central hole
Slotted metal weight2.5 kg, 147 mm dia with 53 dia slot
Perforated plategun-metal/brass 148mm dia with adjustable stem and lock nut and a metal tripod for dial gauge
Cutting collar1
Rammer (light)2.6 kg
Light rammer drop310mm
Rammer (heavy)4. 89 kg
Heavy rammer drop450mm
Supplied without proving ring and dial gauge.

Listed in Soil Mechanics within our TVET Lab Equipments Manufacturers range, the hand operated CBR Test Machine sits alongside the Motorised CBR Machine and the Field CBR Equipment. Soil compaction and strength apparatus nearby includes the Automatic Mechanical Soil Compactor, the Direct Shear Apparatus and the Triaxial Test Set.
