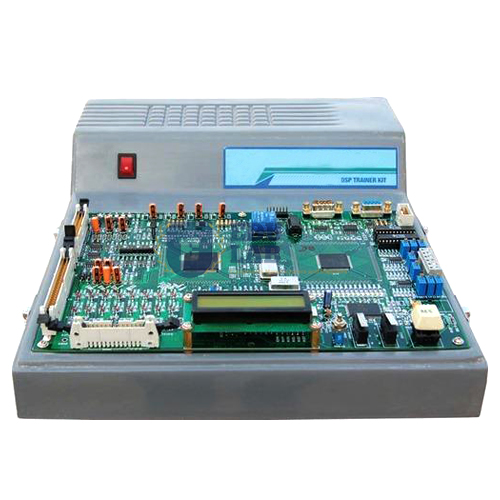

Digital Signal Processor Trainer

System specifications

DSP	TMS320C50
System clock	40 MHz
Monitor ROM	128 KB (27512 x 2)
Main RAM	64 KB (62256 x 2)
Display unit	LCD (16 x 4 lines)
Serial port	RS 232C (8251A x 1)
Memory & I/O decoder	PAL 16L8 or GAL16V8 x 2
PC operation program	DSP Integration Development Environment Program

DSP Integration Development Program:

• Display the TMS320C50 internal architecture.

• Edit, Assemble, Compile, Download & Program running of source life.

• Code memory disassemble function.

• Program the trace, Break function.

• Pop Up menu display.

Hardware interfaces

Keyboard	16 key of Data, 8 key of Function
Expansion connector (I)	System 40 pins connector x 2
External interface connector	20 pins x 1
8255A ports	A, B, C, port 30 pins x 1
Expansion connector (II)	Emulator 14 pins connector x 1
Audio interface (AIC)	TLC32040 (12 bit include with to A/D, D/A)
Audio jack	Input x 1, Output x 1
A/D converter	ADS7805P (16 bit)
D/A converter	DAC712P (16 bit)
I/O output	10 x 8
I/O input and interrupt switch	8 pins DIP switch x 1, TACT switch x 4
External I/O interface	8255A x 1
Stepper motor interface	Driver T.R. x 4
System bus indicator	LED (5Ø) x 12
Power	220V AC
Board size	310 x 265 mm
Case (H x D x W)	100 x 300 x 430 mm

We are leading manufacturers, suppliers of Digital Signal Processor Trainer for Electronics Engineering Lab Equipments. Contact us to get high quality Digital Signal Processor Trainer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.
