Linear Variable Differential Transducer Trainer

Product Code : EL-EELE-11330

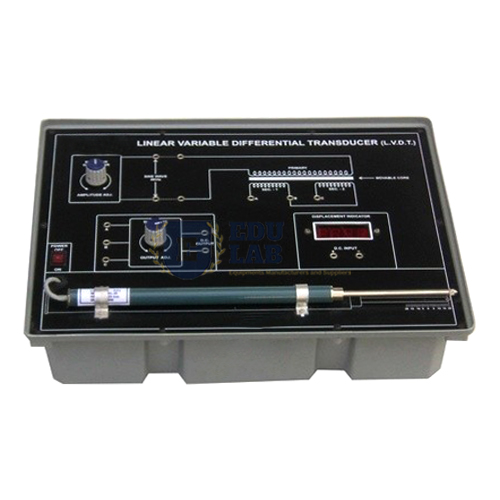

Linear Variable Differential Transducer Trainer
Features:-
One board having the following built in parts:

Specifications

TransducerLinear variable differential transducer (L.V.D.T.)
Range± 20 mm. (Accuracy ± 1 mm, ± 1 Digit)
Moving action6 wires,spring loaded type axial
DisplayDigital Panel meter 3½ digits range 200mV
Oscillator4KHz fixed Sine wave Oscillator having variable amplitude 0–10V (P–P)
Power supply± 12V D.C. at 50mA
Weight4 Kg. (Approx)
DimensionW 412 x H 150 x D 310
•  Detector circuit with output adjustment pot.
•  9 pin male connector.
•  Adequate no.of patch cords stackable 4 mm spring loaded plug length ½ metre.
•  Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections /observation of waveforms.
•  Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.
•  Mains ON/OFF switch and fuse.
We are leading manufacturers, suppliers of Linear Variable Differential Transducer Trainer for Electronics Engineering Lab Equipments. Contact us to get high quality Linear Variable Differential Transducer Trainer for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.

Other transducer trainers include the Pressure Transducer Trainer and the Load Cell Demonstrator, and the Sensors Trainer Captech offers wider sensor practice; the Oscilloscope Demonstrator Trainer helps view the oscillator and detector signals. See Electronics Engineering Lab Equipments under Electronics Lab, or ask via Contact Us.
