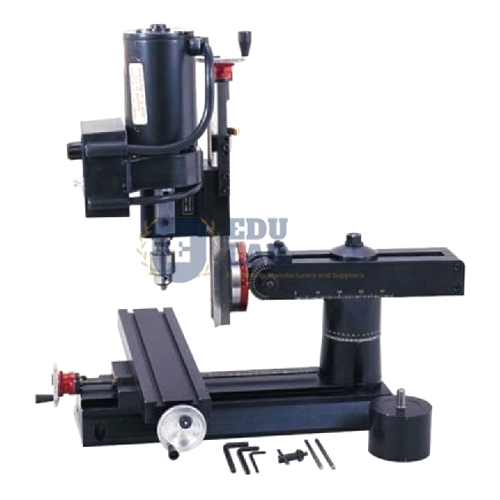

8 Directional Vertical Milling

Product Code : EL-CTM-11750

8 Directional Vertical Milling
Specification:-
Max clearance, table to spindle229 mm
ThroatAdjustable
Hole through spindle10 mm
Spindle nose thread3/4-16 T.P.I
Table size70 x 330 mm
Hold down provision2 “T” Slots

Travel

X-Axis229 mm
Y-Axis178 mm
Z-Axis137 mm
Motor: 90 Volt DC with electronic speed control automatically converts any input from 100 VAC to 240VAC, 50 or 60 Hz.
Spindle speed range: 70-2800 RPM continuously variable by electronic speed control.

For CNC milling at bench scale, see the CNC Micro Mill and the CNC Milling Machine Table Model; larger work suits the CNC Milling Machine Floor Model. All are in CNC Trainer Machine under TVET Lab Equipments Manufacturers.
