CNC Micro Mill Manufacturer,Supplier and Exporter in India

CNC Micro Mill

Product Code : EL-CTM-11749

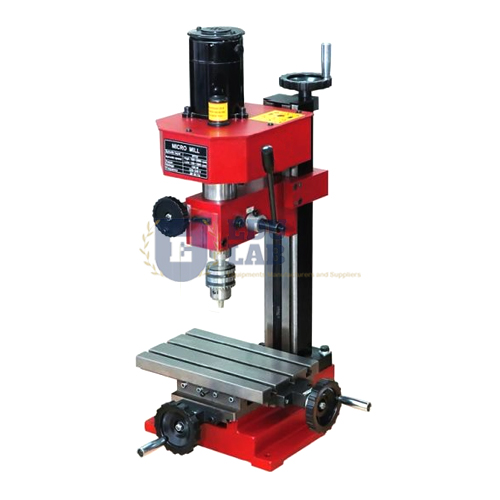

CNC Micro Mill
Description:-
The desktop machining system with capabilities to produce most anything from very simple to very complex geometric forms in wood, plastic, aluminum or steel.
Machine Feature:-
TravelX = 300mm, Y = 146mm, Z = 153mm
Rapid Travel30 in/min
Stepping Resolution0.003mm
Mechanical repeatability0.01mm
Spindle Speed1100 - 11000 RPM
Adjustable tapered brass gib on X-axis
Ground steel sliding ways with adjustable brass gib
Universal Standard G-Code import
Precision Mechanics
Box way Z-axis assembly with ground steel plate and tapered brass gib
Hard anodized aluminum table
1/2" (12.7mm) 20 pitch Cr-Mo lead screws
Complete System Includes:-
Electronic Chopper Driver Unit.
Input/Output Port Included.
200 oz-in. stepping motors.
MicroMill with New Powerful 1/4 HP spindle motor.
Pulley set with the drive belt.
Any one 3mm / 4mm / 6mm collet with collet closer.
Custom Win XP Mach 3 control software interface.
4th Axis Amplifier and Port (optional)
Printer cable, power cable.

A cabinet and PC version with the same travel is the CNC Milling Machine with Cabinet and PC. Other compact mills include the 8 Directional Vertical Milling and the CNC Milling Machine Table Model. See CNC Trainer Machine within TVET Lab Equipments Manufacturers.

Last updated: October 2026.
