CNC Milling Machine Table Model Manufacturer,Supplier and Exporter in India

CNC Milling Machine Table Model

Product Code : EL-CTM-11725

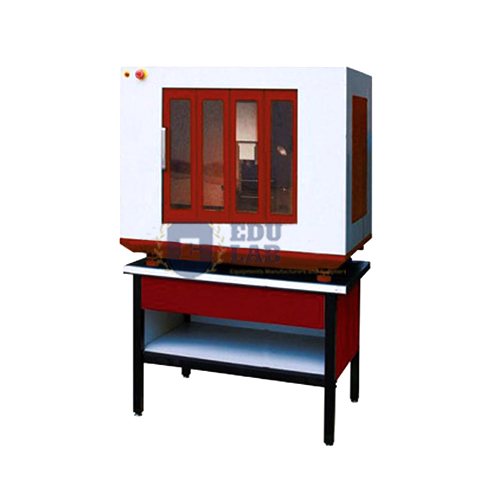

CNC Milling Machine Table Model
Specifications:-
Max. Loading of Worktable20 kg
Table Travel z-axes180mm (7”)
X Axes Feeding Motor Power1.35Nm
Z Axes Feeding Motor Power2.2Nm
X/ Y/ Z Axes Max. Moving Speed2m/min
Drilling Capacity10mm (3/8”)
Worktable T-Slot Size8mm (0.31”)
No. of T-Slot on Table3
Worktable Size400 x 145mm (16” x 5.7”)
X/ Y/ Z Axes Feeding Speed500mm/min
Table Travel x-axes260mm (10”)
Machine Size (L x W x H)1040 x 860 x 940 mm
Table Travel y-axes110mm (4.3”)
Throat150mm (5.9”)
Position Precision0.015mm
Repeat Positioning Precision001mm
Spindle Speed100-7000rpm
Spindle Motor500w
Y Axes Feeding Motor Power1.35Nm
G.W./N.W.218/178 kg

For heavier work, see the CNC Milling Machine Floor Model; the CNC Lathe Machine Table is its turning counterpart, and the CNC Micro Mill and the CNC Milling Controller are related milling items. See CNC Trainer Machine within TVET Lab Equipments Manufacturers.
